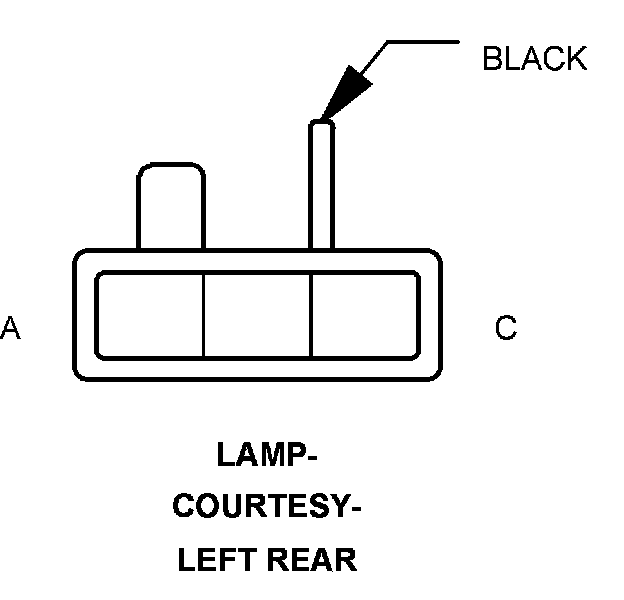

Lamp-Courtesy-Left Rear

Component ID: 178
Component : LAMP-COURTESY-LEFT REAR

Connector:
Name : LAMP-COURTESY-LEFT REAR
Color : BLACK
# of pins : 3




A M24 20YL/WT COURTESY LAMPS DRIVER
B Z909 20BK/LG GROUND
C M27 20YL/LB READING/RAIL LAMPS DRIVER

Component Location - 68
