Lateral Accelerometer: Diagrams

Component ID: 497
Component : SENSOR-DYNAMICS

Connector:
Name : SENSOR-DYNAMICS
Color : BLACK
# of pins : 6
Qualifier : (ESP)




Pin Circuit Description
1 D51 20WT/BR DYNAMICS SENSOR LOW DATA LINK
2 D52 20WT/LB DYNAMICS SENSOR HIGH DATA LINK
3 G4 20VT/LB DYNAMICS SENSOR SUPPLY
4 - -
5 G94 20VT/DB DYNAMICS SENSOR GROUND
6 - -

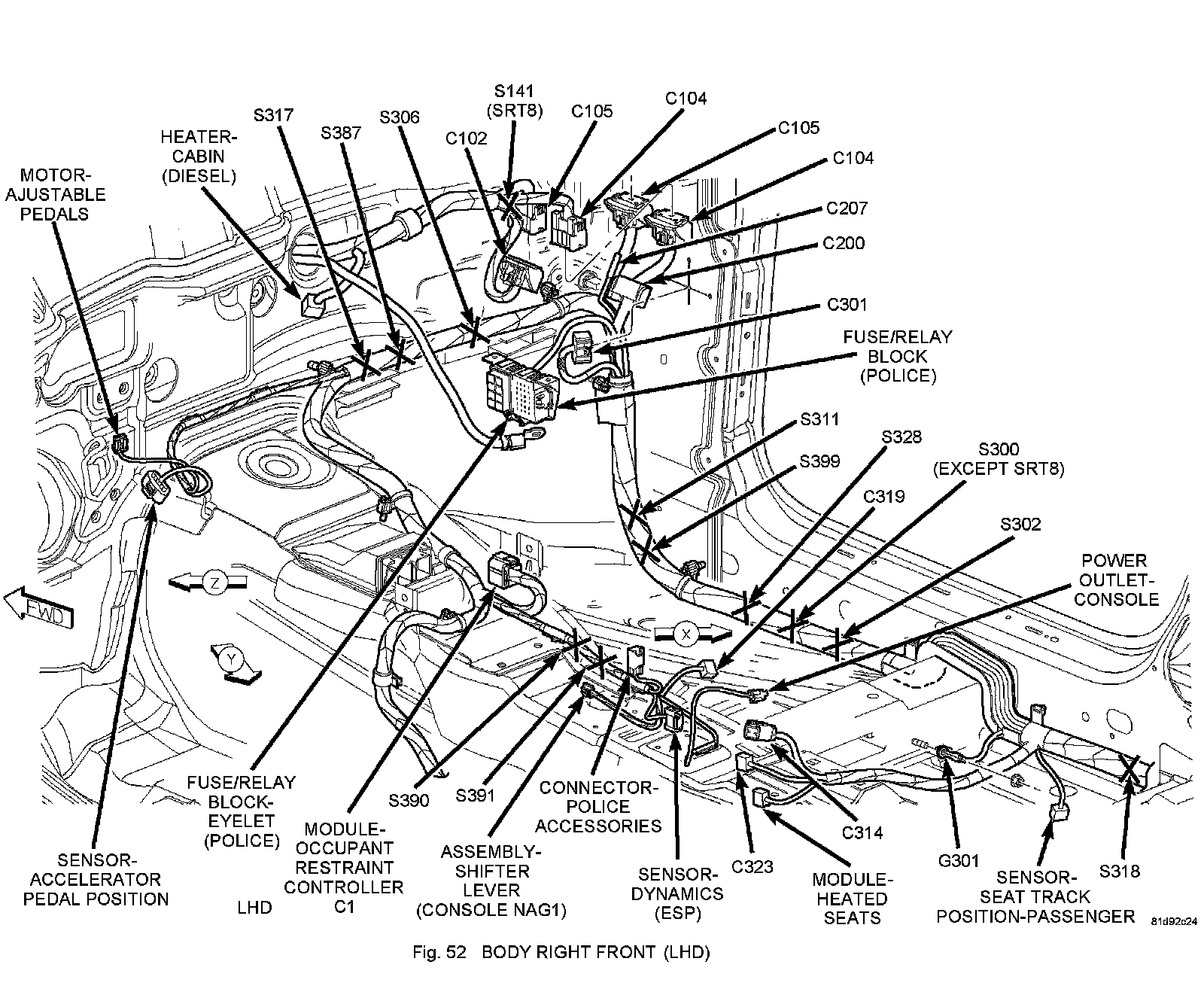

Component Location - 52
