Injector-Fuel 7

Component ID: 171

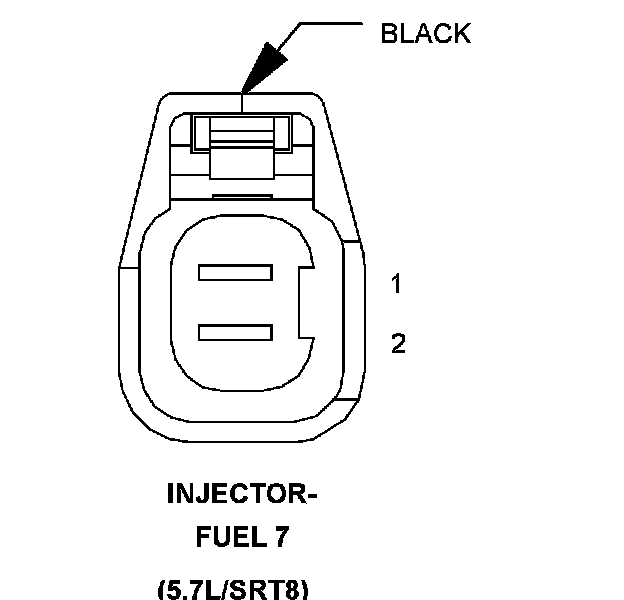

Component : INJECTOR-FUEL 7

Connector:
Name : INJECTOR-FUEL 7
Color : BLACK
# of pins : 2
Qualifier : (5.7L/SRT8)




Pin Circuit Description
1 K26 20BR/YL INJECTOR 7 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT

Component Location - 25




Component Location - 28
