Injector-Fuel 8

Component ID: 172

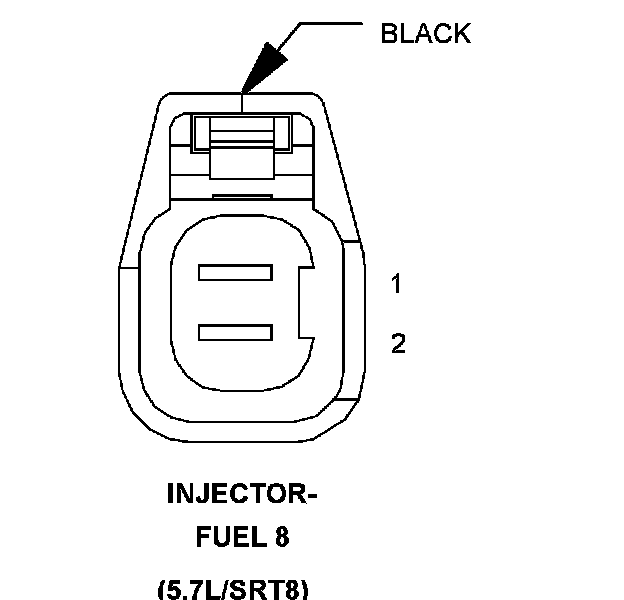

Component : INJECTOR-FUEL 8

Connector:
Name : INJECTOR-FUEL 8
Color : BLACK
# of pins : 2
Qualifier : (5.7L/SRT8)




Pin Circuit Description
1 K28 20BR/LB INJECTOR 8 CONTROL
2 F343 16BR/YL FUSED ASD RELAY OUTPUT

Component Location - 24




Component Location - 27
