Solenoid-Multi Displacement System Cyl 1

Component ID: 550

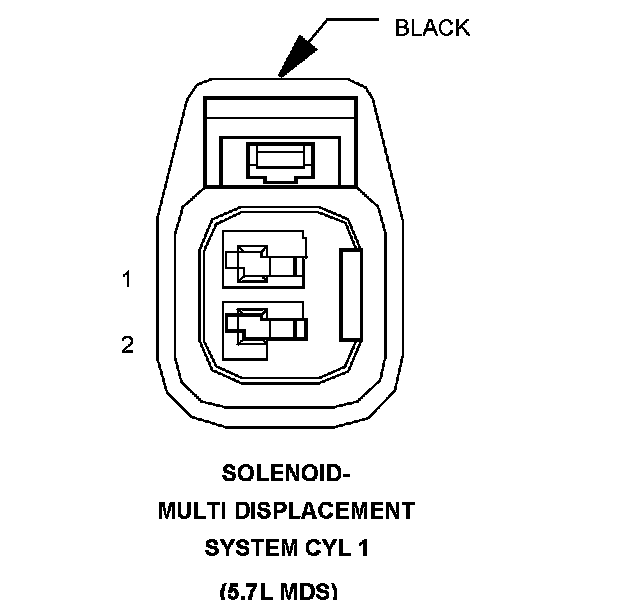

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Circuit Description
1 K451 20BR/WT MDS 1 CONTROL
2 Z904 20BK/BR GROUND
