Solenoid-Multi Displacement System Cyl 6

Component ID: 552

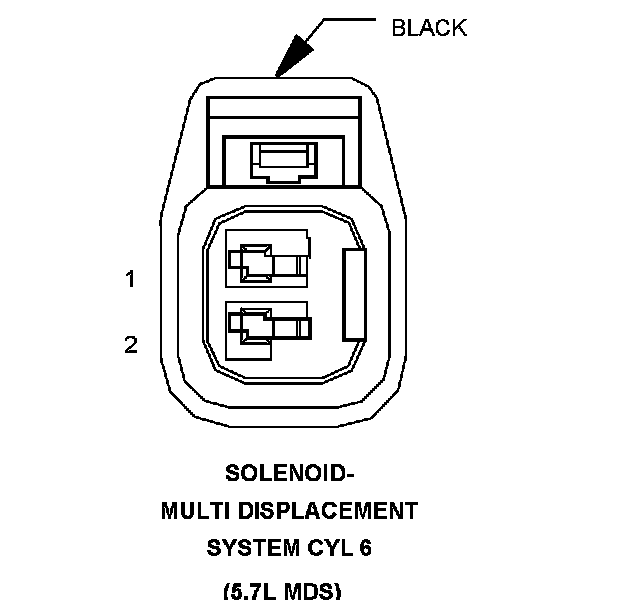

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 6

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 6
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Circuit Description
1 K453 20BR/DG MDS 6 CONTROL
2 Z904 20BK/BR GROUND
