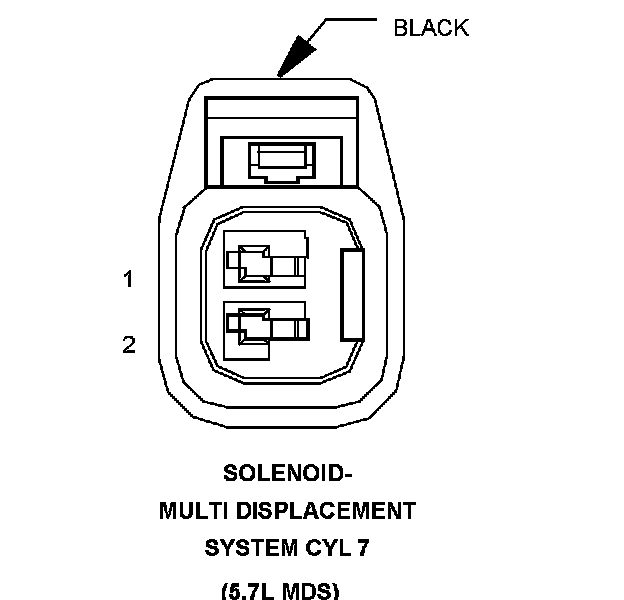

Solenoid-Multi Displacement System Cyl 7

Component ID: 553
Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 7

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 7
Color : BLACK
# of pins : 2
Qualifier : (5.7L MDS)




Pin Circuit Description
1 K454 20BR/OR MDS 7 CONTROL
2 Z904 20BK/BR GROUND
