Lamp-Footwell-Left Rear

Component ID: 188

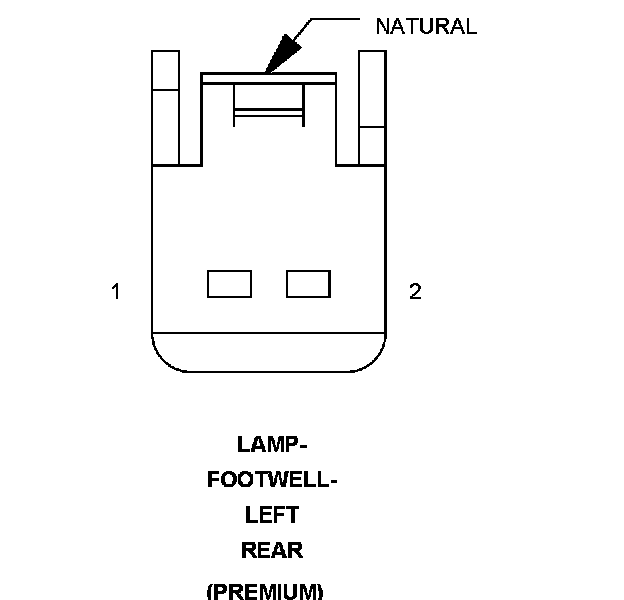

Component : LAMP-FOOTWELL-LEFT REAR

Connector:
Name : LAMP-FOOTWELL-LEFT REAR
Color : NATURAL
# of pins : 2
Qualifier : (PREMIUM)




Pin Circuit Description
1 Z912 20BK/WT GROUND
2 E12 20OR/GY PANEL LAMPS DRIVER
