Starter Motor: Diagrams

Component ID: 563
Component : STARTER

Connector:
Name : STARTER
Color : BLACK
# of pins : 1
Qualifier : (2.7L/3.5L/5.7L AWD)




Pin Circuit Description
1 T750 16YL/GY STARTER RELAY OUTPUT
Pin Circuit Description
1 T750 16LG STARTER RELAY OUTPUT

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

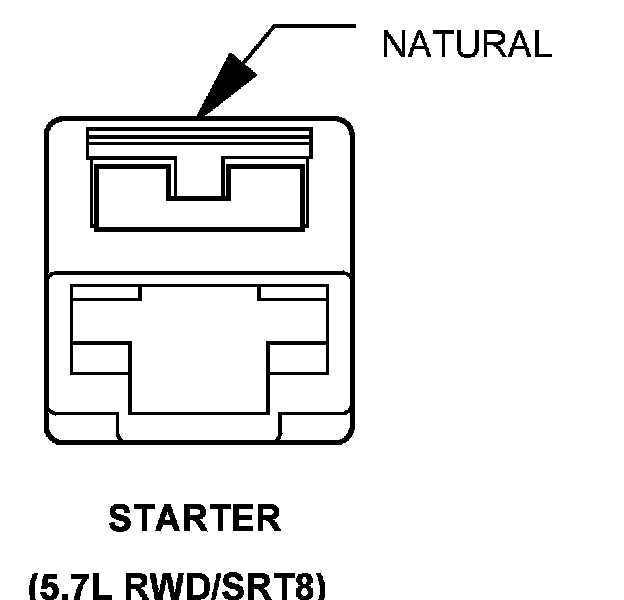

Connector:
Name : STARTER
Color : NATURAL
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Circuit Description
1 T750 16LG STARTER RELAY OUTPUT
Pin Circuit Description
1 T750 16YL/GY STARTER RELAY OUTPUT

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

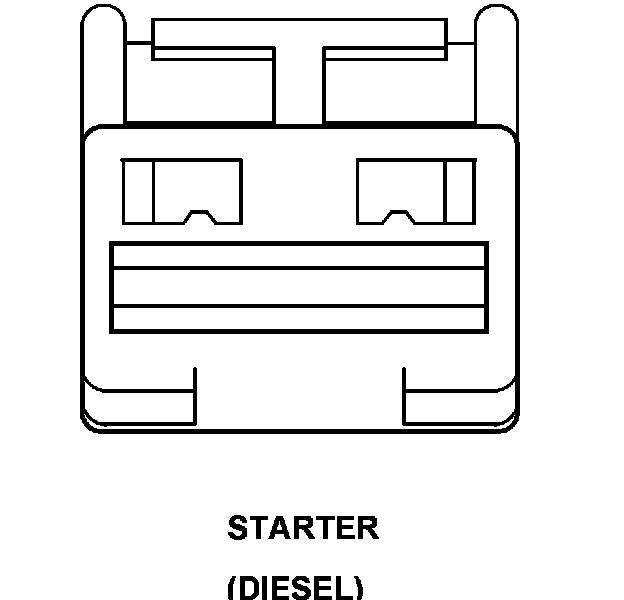

Connector:
Name : STARTER
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 T750 14VT STARTER RELAY OUTPUT

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

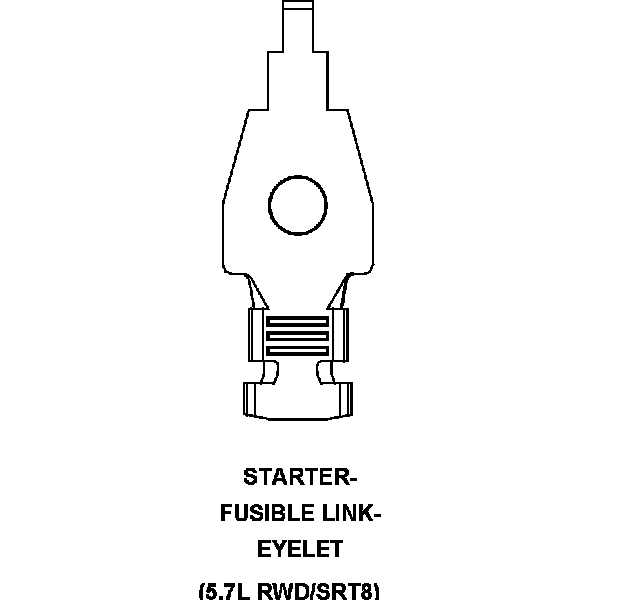

Connector:
Name : STARTER-FUSIBLE LINK-EYELET
Color :
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Circuit Description
1 A802 8LB B(+)
Pin Circuit Description
1 A802 4RD B(+)

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

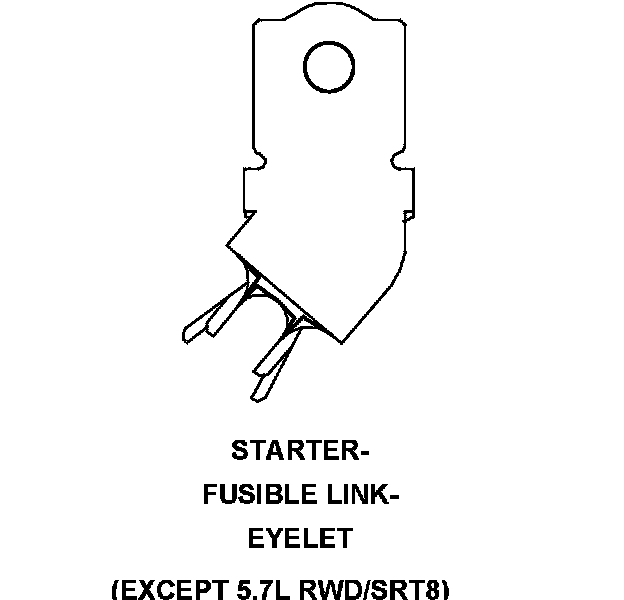

Connector:
Name : STARTER-FUSIBLE LINK-EYELET
Color :
# of pins : 1
Qualifier : (EXCEPT 5.7L RWD/SRT8)




Pin Circuit Description
1 A802 8LB B(+)

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

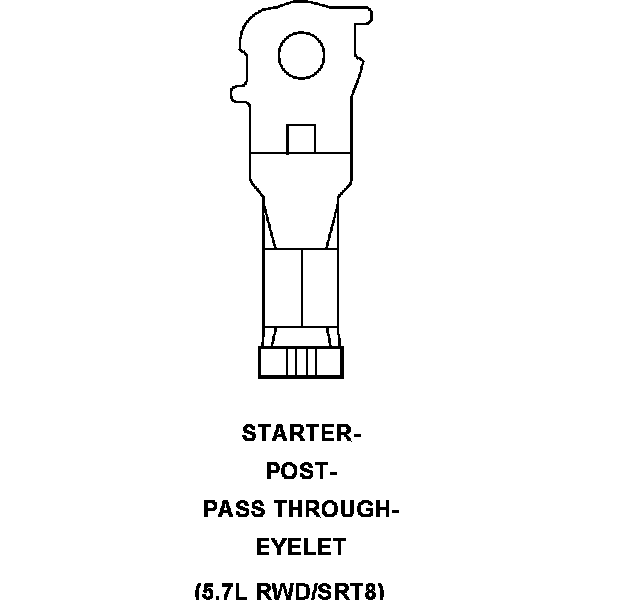

Connector:
Name : STARTER-POST-PASS THROUGH-EYELET
Color :
# of pins : 1
Qualifier : (5.7L RWD/SRT8)




Pin Circuit Description
1 A11 4RD B(+)

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20

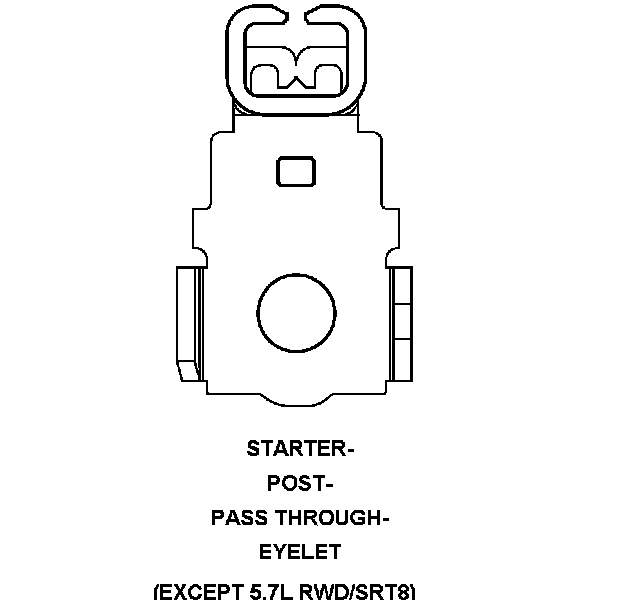

Connector:
Name : STARTER-POST-PASS THROUGH-EYELET
Color :
# of pins : 1
Qualifier : (EXCEPT 5.7L RWD/SRT8)




Pin Circuit Description
1 A11 4BR/RD B(+)
Pin Circuit Description
1 A11 4RD B(+)

Component Location - 22




Component Location - 26




Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 20
