Schematics and Diagrams







SCHEMATICS AND DIAGRAMS

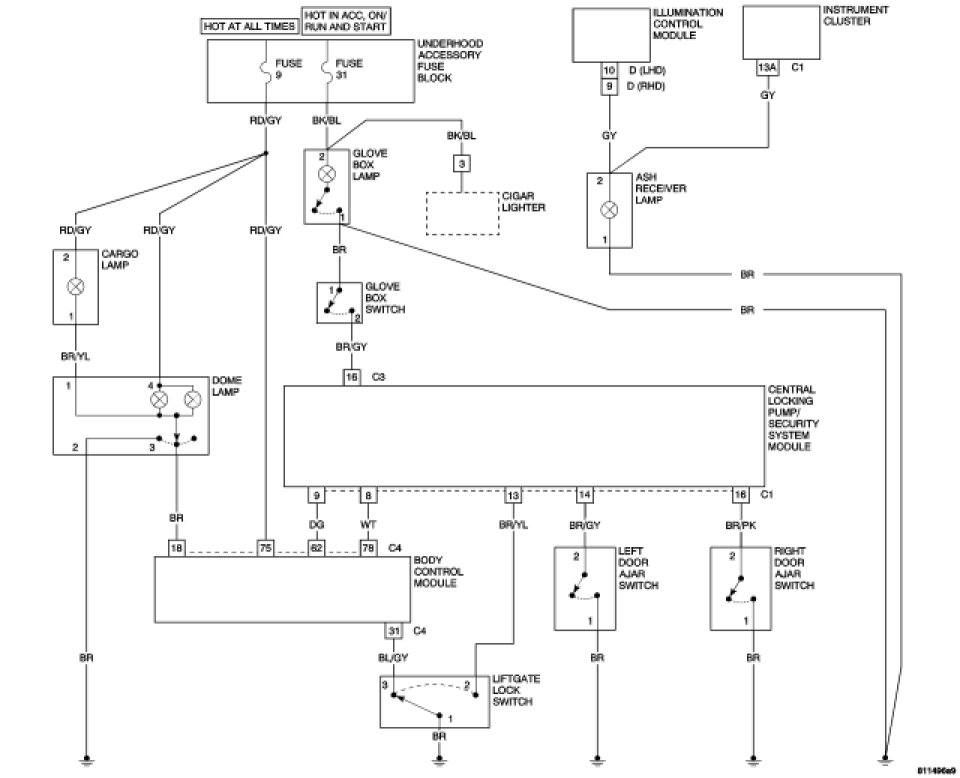

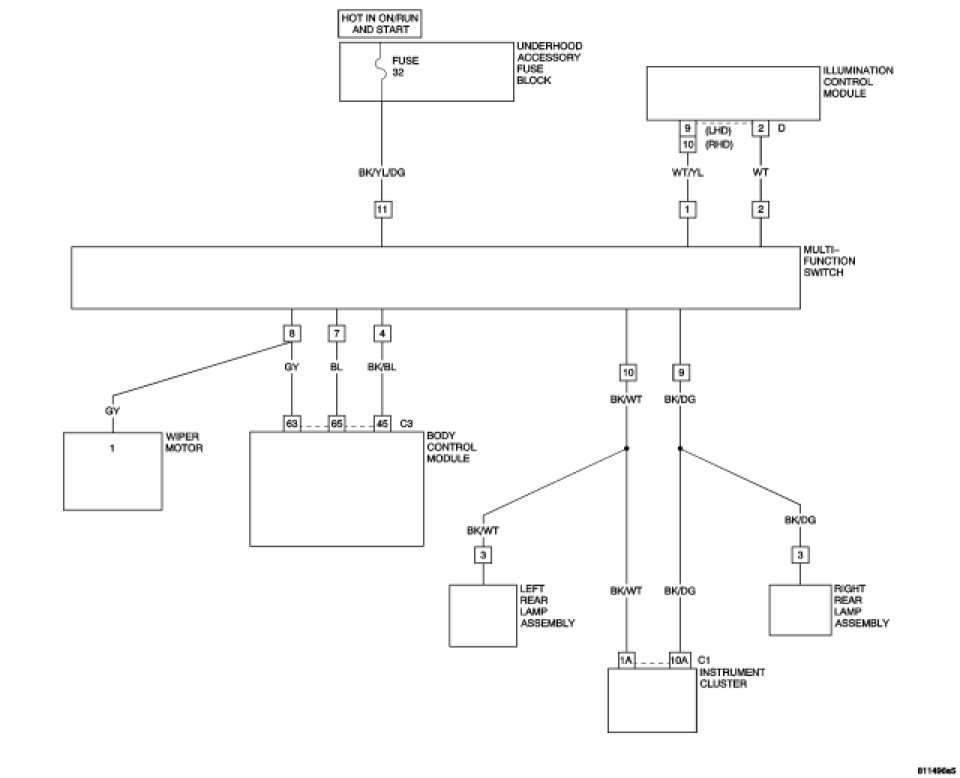

EXTERIOR LIGHTING CIRCUIT DIAGRAM (1 OF 6)

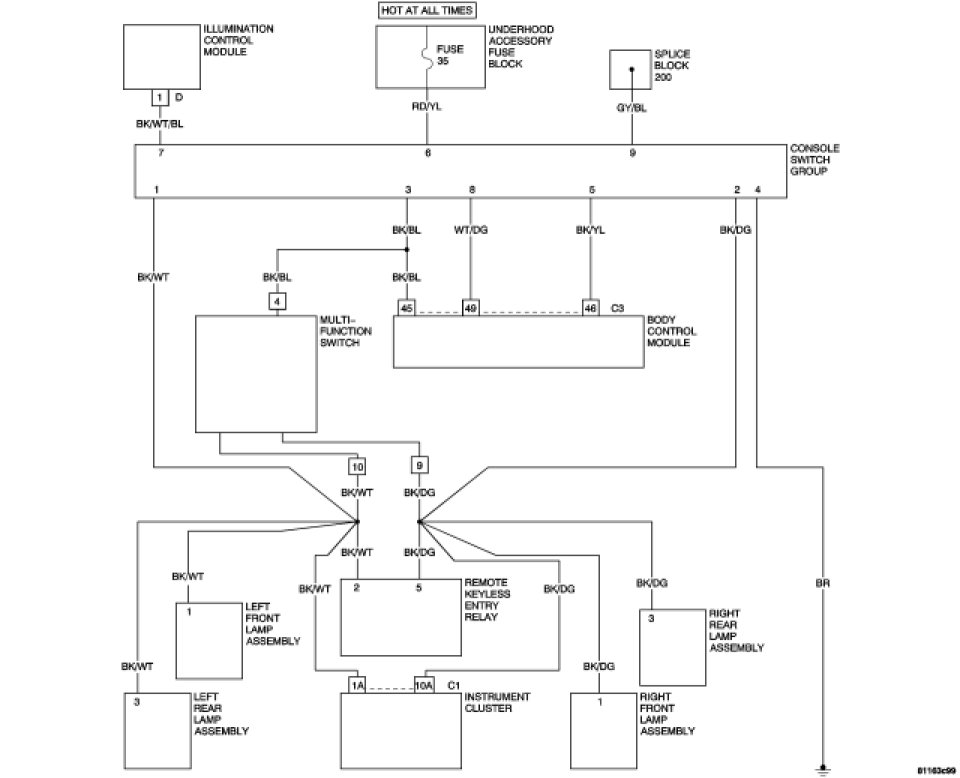

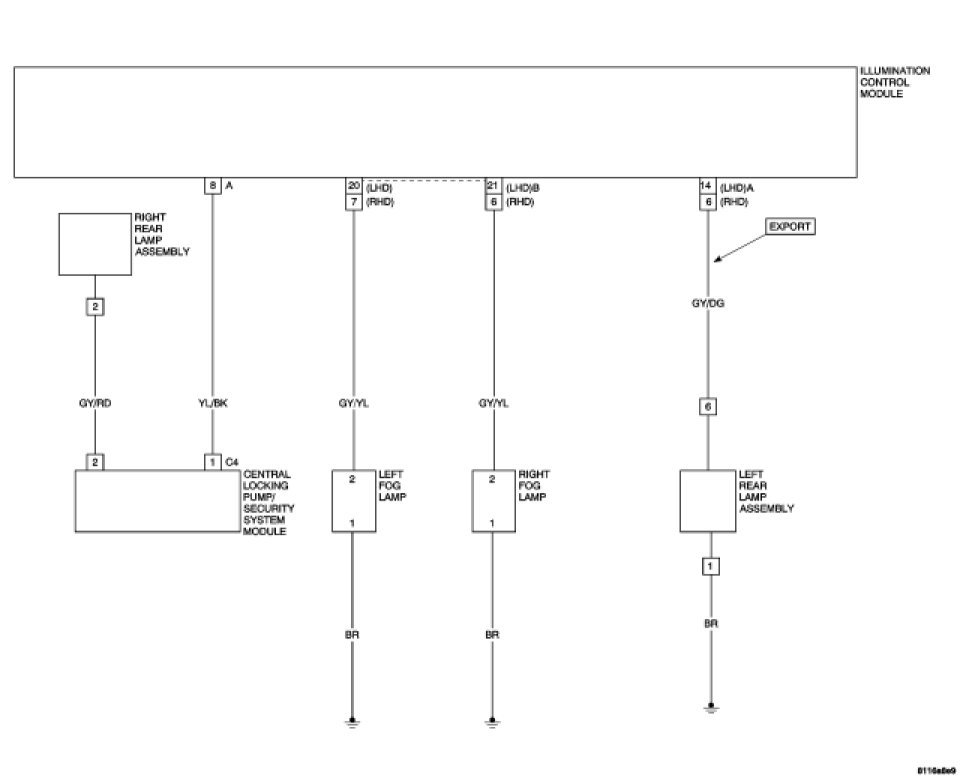

EXTERIOR LIGHTING CIRCUIT DIAGRAM (2 OF 6)

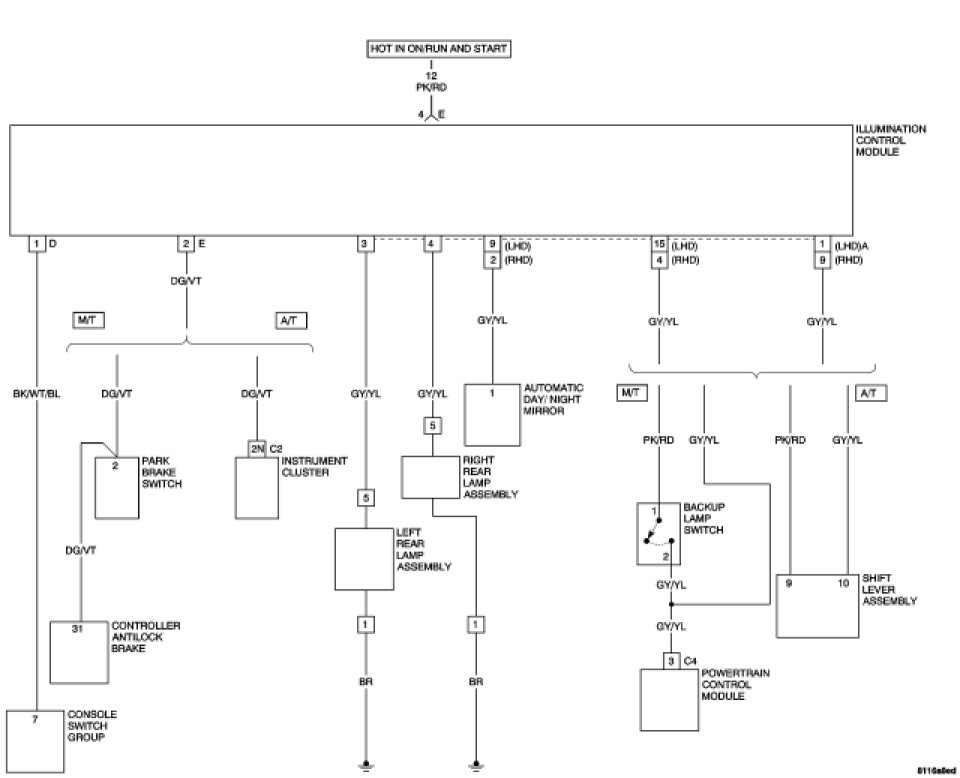

EXTERIOR LIGHTING CIRCUIT DIAGRAM (3 OF 6)

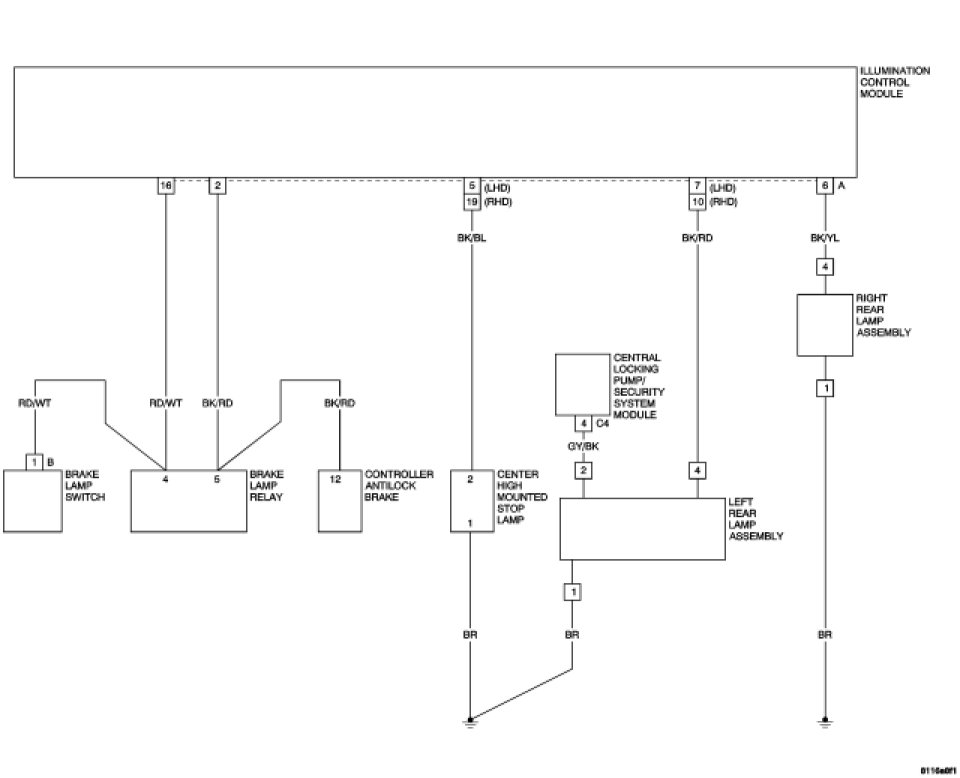

EXTERIOR LIGHTING CIRCUIT DIAGRAM (4 OF 6)

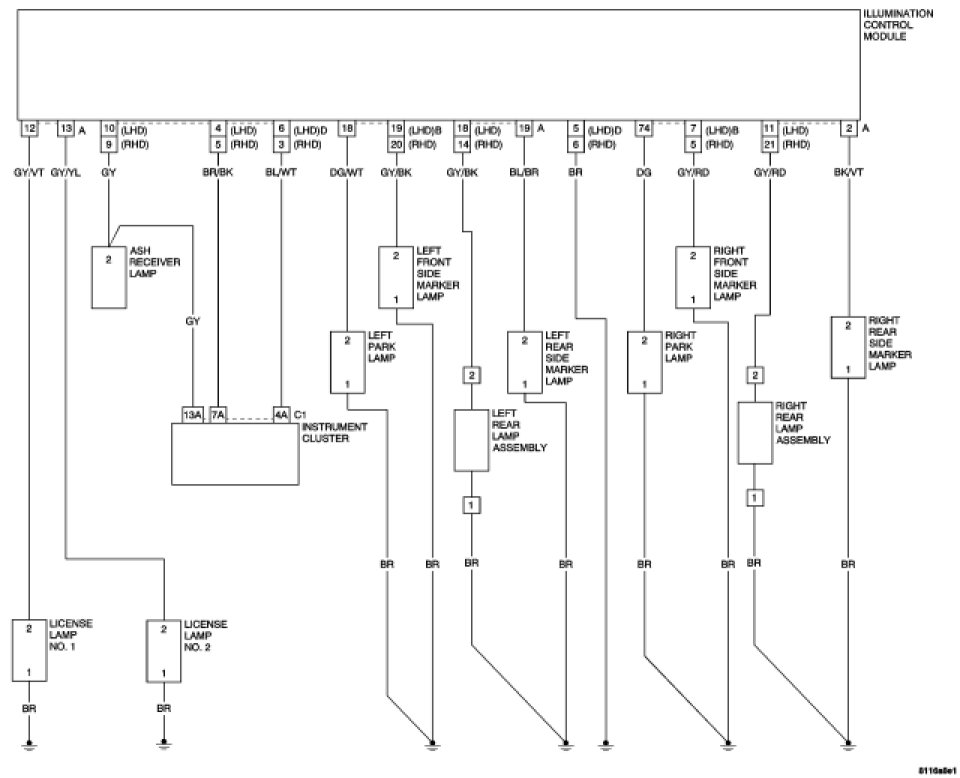

EXTERIOR LIGHTING CIRCUIT DIAGRAM (5 OF 6)

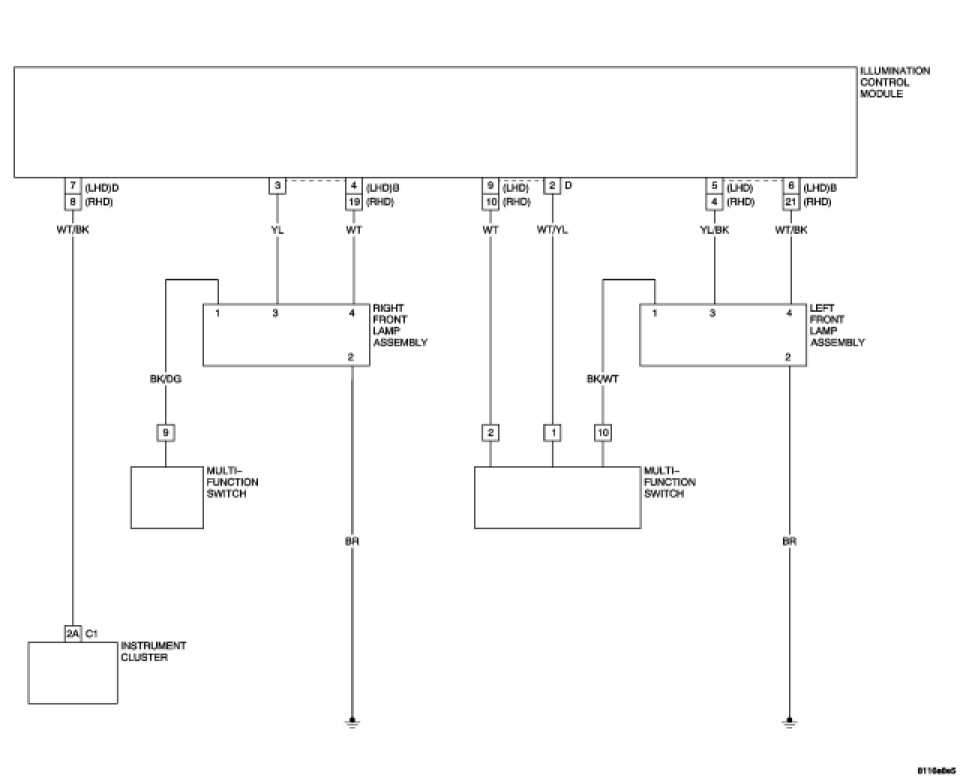

EXTERIOR LIGHTING CIRCUIT DIAGRAM (6 OF 6)
