C201
Component ID: 34
Component : C201

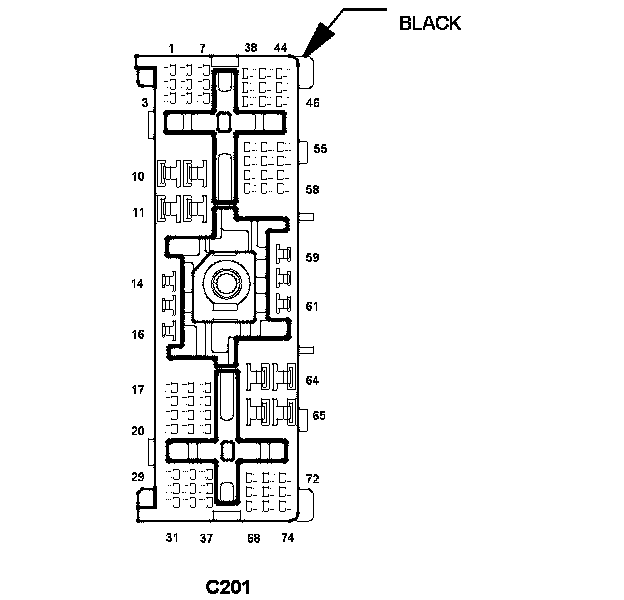

Connector:
Name : C201
Color : BLACK
# of pins : 74
Gender : FEMALE
Pin Circuit Description
1 B25 20DG/WT PARK BRAKE SWITCH SENSE
2 A106 20LB/RD FUSED B(+)
3 F500 18DG/PK FUSED RUN RELAY OUTPUT
4 K975 18BR/OR S/C SWITCH GROUND
5 F316 20PK/OR FUSED ACCESSORY RELAY OUTPUT
6 Z104 20BK/LG GROUND
7 T751 20YL IGNITION SWITCH OUTPUT (START)
8 Z18 18BK/LB GROUND
9 - -
10 - -
11 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
12 - -
13 - -
14 A105 18DB/RD FUSED B(+)
15 A118 20RD/OR FUSED B(+)
16 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
17 V38 20VT/OR S/C SIGNAL 2
18 X3 20DG/VT HORN SWITCH SENSE
19 V37 20VT S/C SIGNAL 1
20 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
21 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
22 R80 20LB/TN RIGHT FRONT IMPACT SENSOR SIGNAL
23 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
24 X970 22GY/OR CAMERA SIGNAL
25 X971 22GY/LB CAMERA RETURN
26 X972 22 CAMERA SHIELD
27 D25 20WT/VT PCI BUS
28 D54 20WT CAN B BUS(-)
29 D55 20WT/OR CAN B BUS(+)
30 F100 20PK/VT ORC RUN DRIVER
31 F201 20PK/LB ORC RUN-START DRIVER
32 - -
33 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
34 T5 20DG/YL AUTOSTICK UPSHIFT SIGNAL
35 - -
36 D64 20WT/LB CAN C BUS (-)
37 D65 20WT/LG CAN C BUS (+)
38 F2 18PK/YL IGNITION SWITCH OUTPUT (RUN-START)
39 D123 20WT/BR FLASH PROGRAM ENABLE
40 E12 18OR/GY PANEL LAMPS DRIVER
41 C57 20DB/LB REAR BOOSTER FAN CONTROL
42 C53 20LB REAR MODE DOOR DRIVER (B)
43 C153 20DB/BR REAR MODE DOOR DRIVER (A)
44 - -
45 F504 20GY/PK FUSED RUN RELAY OUTPUT
46 G21 22VT/WT REAR FAN ON INDICATOR DRIVER
47 C31 20LB/YL REAR FAN SENSE
48 C11 22LB/OR REAR FAN SENSE SUPPLY
49 C931 22DB/TN REAR FAN SENSE RETURN
50 - -
51 - -
52 - -
53 - -
54 Z111 18BK/WT GROUND
55 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
56 - -
57 - -
58 - -
59 F20 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
60 A108 18LG/RD FUSED B(+)
61 - -
62 X205 18GY/LG -
63 X295 18GY/DG -
64 - -
65 - -
66 G400 20VT/LB RED SIGNAL
67 - -
68 G410 20VT/LG BLUE SIGNAL
69 - -
70 G420 20VT/BR GREEN SIGNAL
71 - -
72 G430 20VT/GY SCREEN SYNCHRONIZE
73 - -
74 G591 22 SHIELD
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

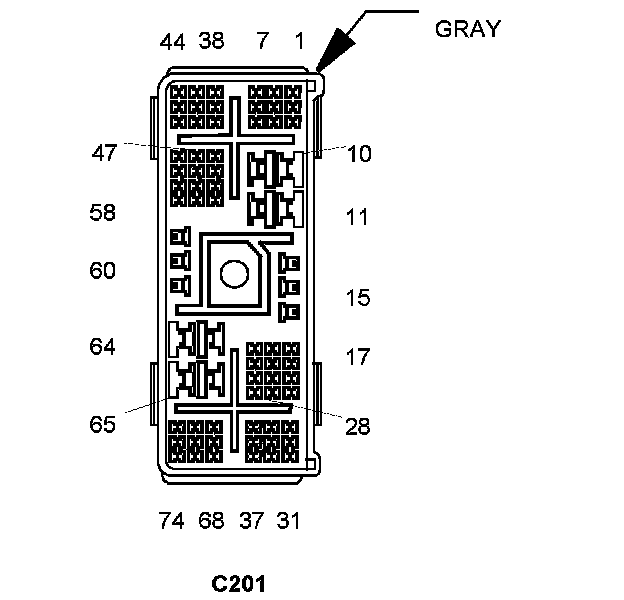

Connector:
Name : C201
Color : GRAY
# of pins : 74
Gender : MALE
Pin Circuit Description
1 B25 20DG/WT PARK BRAKE SWITCH SENSE
2 A106 20LB/RD FUSED B(+)
3 F500 18DG/PK FUSED RUN RELAY OUTPUT
4 K975 20BR/OR SENSOR GROUND
5 F316 20PK/OR FUSED ACCESSORY RELAY OUTPUT
6 - -
7 T751 20YL IGNITION SWITCH OUTPUT (START)
8 Z18 18BK/LB -
9 - -
10 - -
11 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
12 - -
13 - -
14 A105 18DB/RD FUSED B(+)
15 A118 20RD/OR FUSED B(+)
16 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
17 V38 20VT/OR S/C SIGNAL 2
18 X3 20DG/VT HORN SWITCH SENSE
19 V37 20VT S/C SIGNAL 1
20 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
21 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
22 R80 20LB/TN RIGHT FRONT IMPACT SENSOR SIGNAL
23 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
24 X970 22GY/OR CAMERA SIGNAL
25 X971 22GY/LB CAMERA RETURN
26 X972 22 CAMERA SHIELD
27 D25 20WT/VT PCI BUS
28 D54 20WT CAN B BUS(-)
29 D55 20WT/OR CAN B BUS(+)
30 F100 20PK/VT ORC RUN DRIVER
31 F201 20PK/LB ORC RUN-START DRIVER
32 - -
33 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
34 T5 20DG/YL AUTOSTICK UPSHIFT SIGNAL
35 - -
36 D64 20WT/LB CAN C BUS (-)
37 D65 20WT/LG CAN C BUS (+)
38 F2 18PK/YL IGNITION SWITCH OUTPUT (RUN-START)
39 D123 20WT/BR FLASH PROGRAM ENABLE
40 E12 18OR/GY PANEL LAMPS DRIVER
41 C57 22DB/LB REAR BOOSTER FAN CONTROL
42 C53 22LB REAR MODE DOOR DRIVER (B)
43 C153 22DB/BR REAR MODE DOOR DRIVER (A)
44 - -
45 F504 20GY/PK FUSED RUN RELAY OUTPUT
46 G21 22VT/WT REAR FAN ON INDICATOR DRIVER
47 C31 22LB/YL REAR FAN SENSE
48 C11 22LB/OR REAR FAN SENSE SUPPLY
49 C931 22DB/TN REAR FAN SENSE RETURN
50 - -
51 - -
52 - -
53 - -
54 Z111 18BK/WT GROUND
55 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
56 - -
57 - -
58 - -
59 F20 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
60 A108 18LG/RD FUSED B(+)
61 - -
62 X205 18GY/LG -
63 X295 18GY/DG -
64 - -
65 - -
66 G400 20VT/LB RED SIGNAL
67 - -
68 G410 20VT/LG BLUE SIGNAL
69 - -
70 G420 20VT/BR GREEN SIGNAL
71 - -
72 G430 20VT/GY SCREEN SYNCHRONIZE
73 - -
74 G591 22 SHIELD
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25
