C204

Component ID: 36
Component : C204

Connector:
Name : C204
Color : LT. GRAY
# of pins : 12
Qualifier : (DVD)
Gender : FEMALE

Pin Circuit Description
1 X114 20GY/TN FUSED B(+)
2 X955 22 SHIELD
3 X515 22GY/OR VIDEO SIGNAL
4 X960 22GY/WT HEADPHONE AUDIO SIGNAL RIGHT
5 X961 22GY/OR HEADPHONE AUDIO SIGNAL LEFT
6 X530 20GY/DB VIDEO RETURN
7 X211 20YL/GY FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
8 X915 22GY/LB VIDEO CONTROL
9 X555 22VT/OR VIDEO PLAY SIGNAL
10 X962 22DG/WT HEADPHONE RETURN
11 X955 22 SHIELD
12 X963 22WT HEADPHONE I/R XMTR ENABLE

Component Location - 14

Component Location - 18

Component Location - 43

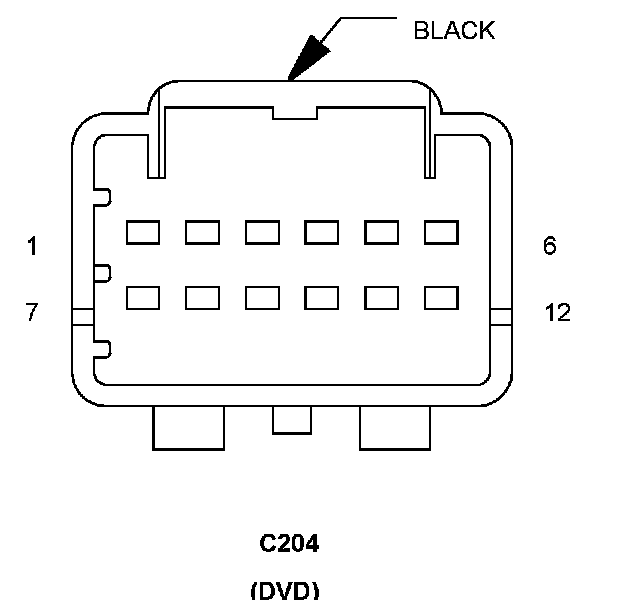

Connector:
Name : C204
Color : BLACK
# of pins : 12
Qualifier : (DVD)
Gender : MALE

Component Location - 18

Component Location - 43
