C310

Component ID: 47
Component : C310

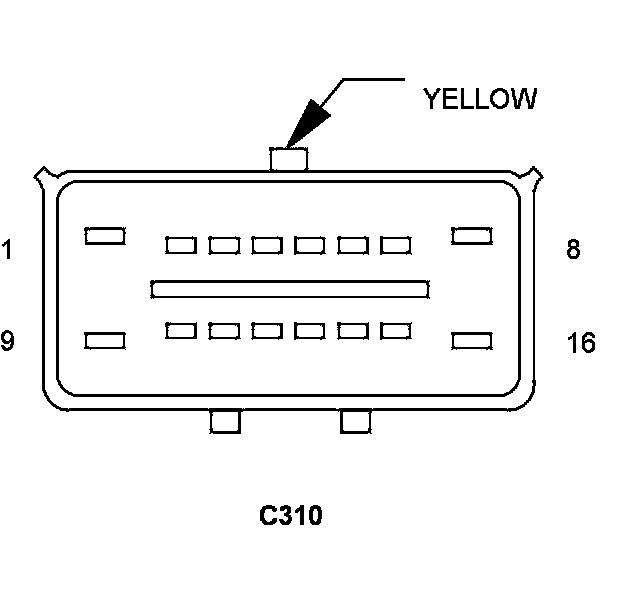

Connector:
Name : C310
Color : YELLOW
# of pins : 16
Gender : FEMALE




Pin Circuit Description
1 P44 14LG/DG PASSENGER SEAT RECLINER UP DRIVER
2 - -
3 - -
4 - -
5 P95 18LG/WT PASSENGER SEAT HEATER B(+) DRIVER
6 P97 18LG/YL PASSENGER SEAT HEATER GROUND
7 - -
8 P14 14LG/OR PASSENGER SEAT HORIZONTAL FORWARD DRIVER
9 P16 14LG/BR PASSENGER SEAT HORIZONTAL REARWARD DRIVER
10 F201 20PK/LB ORC RUN-START DRIVER
11 R86 20LG/LB SEAT BELT TENSION SENSOR POWER
12 R105 20LB/LG BELT TENSION SENSOR SIGNAL
13 D25 20WT/VT PCI BUS
14 Z104 20BK/LG GROUND
15 R986 20LG/BR SEAT BELT TENSION SENSOR GROUND
16 P42 14LG/GY PASSENGER SEAT RECLINER DOWN DRIVER

Component Location - 26

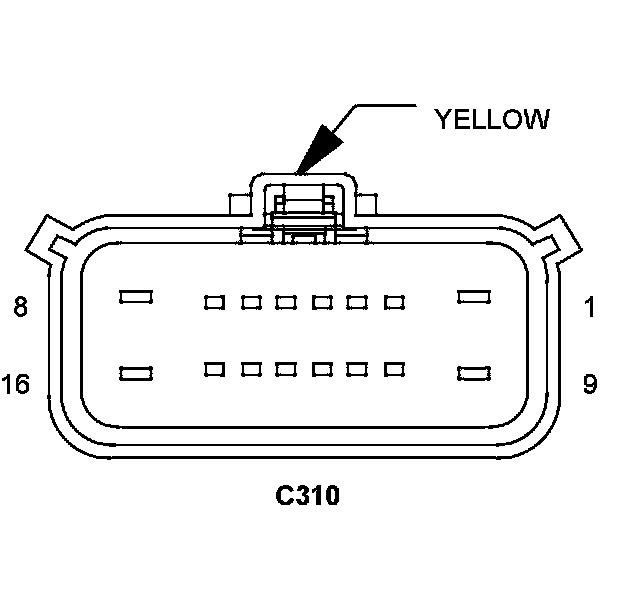

Connector:
Name : C310
Color : YELLOW
# of pins : 16
Gender : MALE




Pin Circuit Description
1 P44 14LG/DG PASSENGER SEAT RECLINER UP DRIVER
2 - -
3 - -
4 - -
5 P95 18LG/WT PASSENGER SEAT HEATER B(+) DRIVER
6 P97 18LG/YL PASSENGER SEAT HEATER GROUND
7 - -
8 P14 14LG/OR PASSENGER SEAT HORIZONTAL FORWARD DRIVER
9 P16 14LG/BR PASSENGER SEAT HORIZONTAL REARWARD DRIVER
10 F201 20PK/OR ORC RUN-START DRIVER
11 R86 20LG/LB BELT TENSION SENSOR FEED
12 R105 20WT/OR BELT TENSION SENSOR SIGNAL
13 D25 20WT/VT PCI BUS
14 Z104 20BK/LG GROUND
15 R986 20LG/BR BELT TENSION SENSOR GROUND
16 P42 14LG/GY PASSENGER SEAT RECLINER DOWN DRIVER

Component Location - 26
