Canister Purge Solenoid

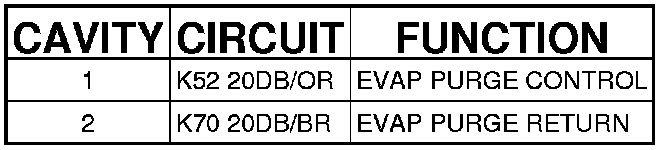

Connector (GAS) - (HEADLAMP AND DASH) 2 WAY

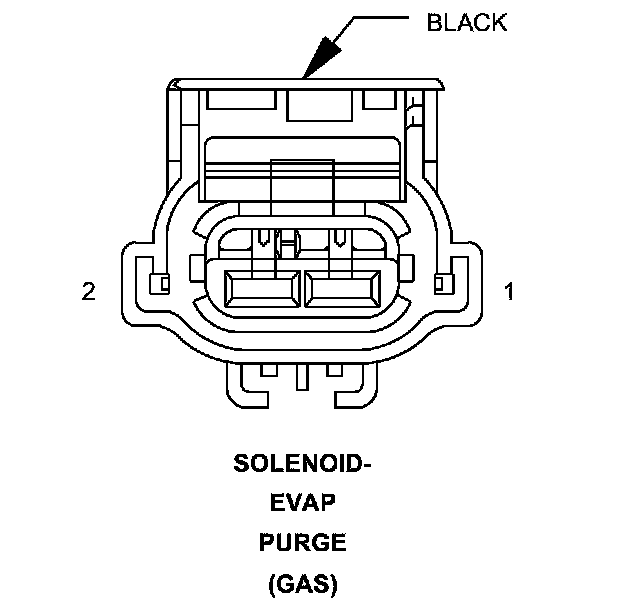

SOLENOID-EVAP PURGE (GAS) - (HEADLAMP AND DASH) 2 WAY
