Ignition Coil 5 3 Way
Ignition Coil 5 3 Way

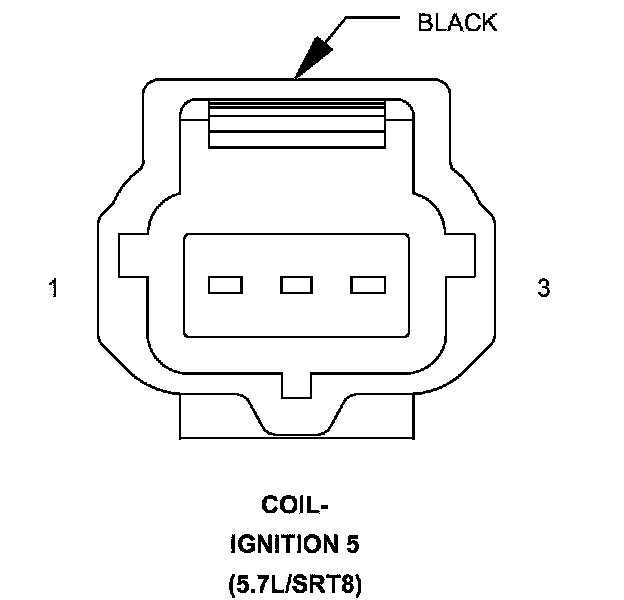

Connector (5.7L/SRT8) - (ENGINE) 3 WAY

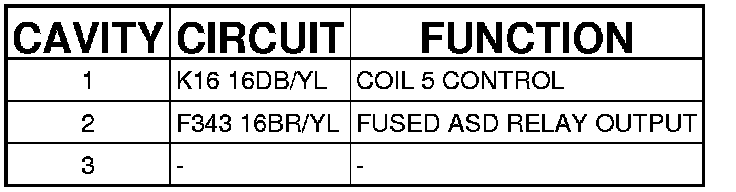

COIL-IGNITION 5 (5.7L/SRT8) - (ENGINE) 3 WAY
