Ignition Coil 7 3 Way
Ignition Coil 7 3 Way

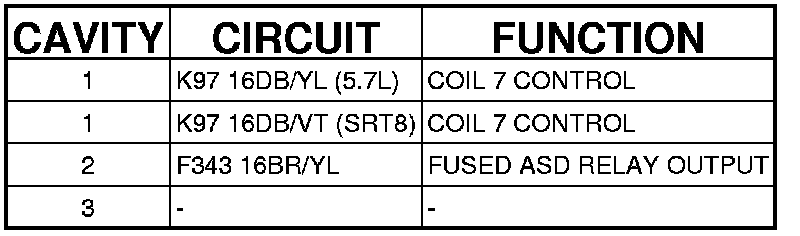

Connector (5.7L/SRT8) - (ENGINE) 3 WAY

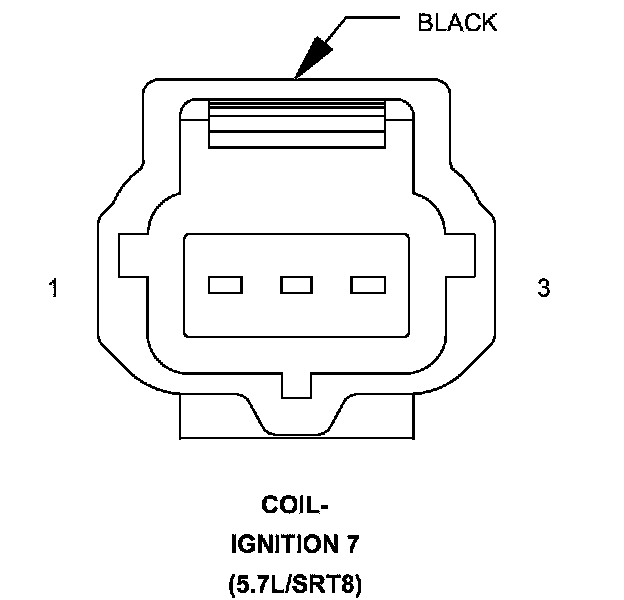

COIL-IGNITION 7 (5.7L/SRT8) - (ENGINE) 3 WAY
