Ignition Coil 8 3 Way
Ignition Coil 8 3 Way

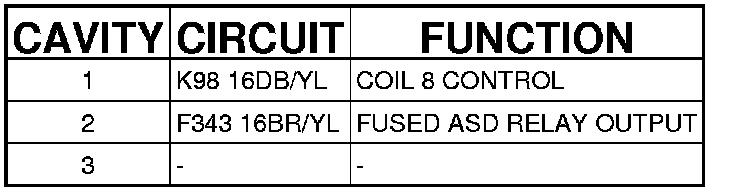

Connector (5.7L/SRT8) - (ENGINE) 3 WAY
COIL-IGNITION 8 (5.7L/SRT8) - (ENGINE) 3 WAY
