Police Accessories Connector (Police) (Body) 12 Way
Police Accessories Connector (Police) (Body) 12 Way

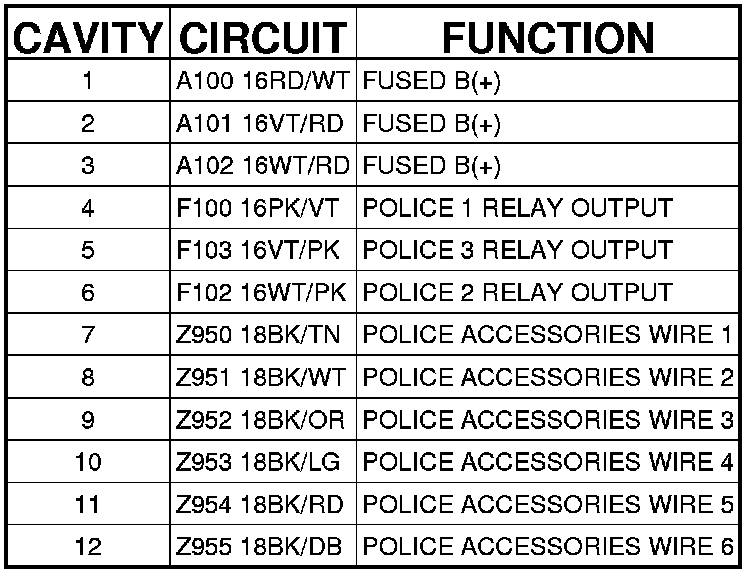

Connector (POLICE) - (BODY) 12 WAY
CONNECTOR-POLICE ACCESSORIES (POLICE) - (BODY) 12 WAY
