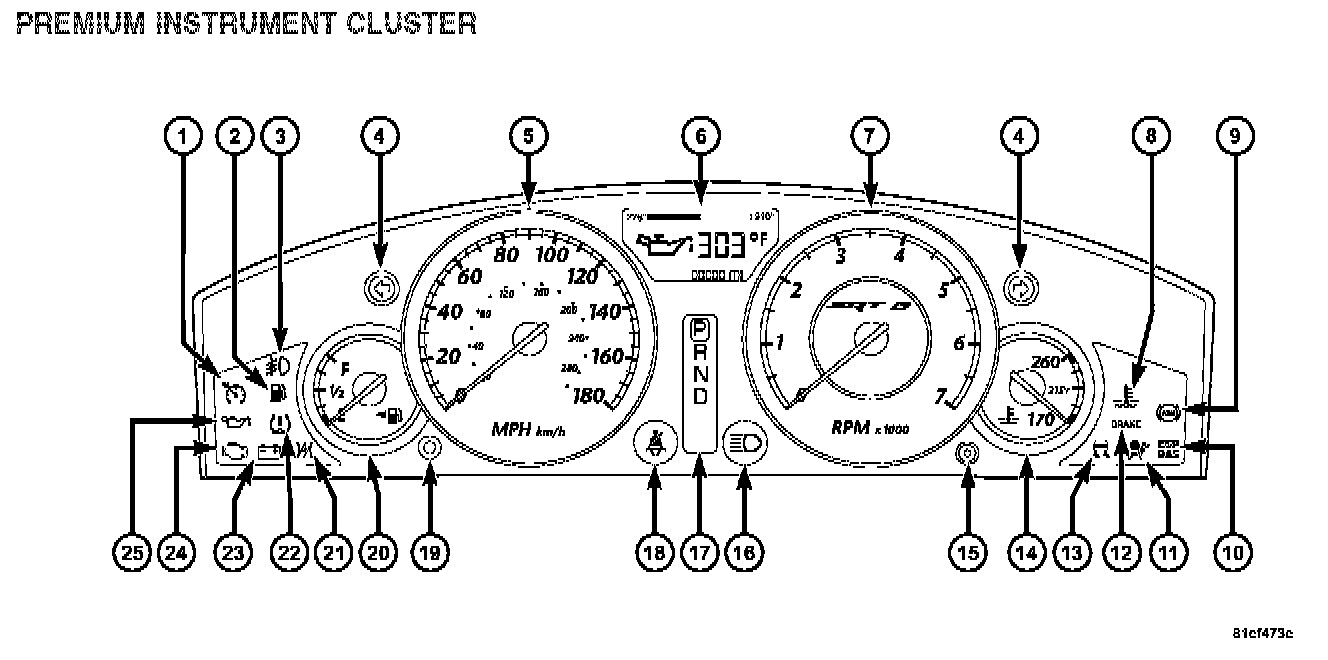

Indicator Lamp Identification

1. Electronic Speed Control / adaptive Cruise Control (ACC) Indicator Light - If Equipped
2. Low Fuel Indicator Light
3. Front Fog Light Indicator
4. Turn Signal Indicators
5. Speedometer
6. Electronic Vehicle Information Center (EVIC) Display
7. Tachometer
8. Engine Temperature Warning light
9. Anti-Lock Brake (ABS) Light
10. Electronic Stability Program (ESP)/ Brake Assist System (BAS) Malfunction Indicator Light
11. Airbag Warning Light
12. Brake Warning Light
13. Electronic Stability Program (ESP)/ Traction Control System (TCS) Indicator Light
14. Temperature Gauge
15. Trip Odometer Button
16. High Beam Light
17. Shift Lever Indicator
18. Seat belt Reminder Light
19. Vehicle Security Light - If Equipped
20. Fuel Gauge
21. Electronic Throttle Control (ETC) Light
22. Tire Pressure Monitor Telltale Light
23. Charging System Light
24. Malfunction Indicator Light (MIL)
25. Oil Pressure Warning Light
