Service Procedure

1. Replace the battery negative ground cable using the following procedure:

a. Turn the ignition switch to the "Off" position. Be certain that all electrical accessories are turned off.

b. Remove the load floor cover to gain access to the battery.





c. Disconnect and isolate the battery negative ground cable clamp (Figure 1).

d. Remove the fastener securing the battery negative ground cable to the body (Figure 1).

e. Remove the battery negative ground cable from the vehicle and discard the old cable.

f. Position the new battery negative ground cable in the vehicle.

g. Install the fastener securing the battery negative ground cable to the body. Tighten the fastener to 44 in. lbs. (5 N.m).

2. Replace the battery using the following procedure:

NOTE:
Vehicles equipped with a police package (sales code AHB) do not require battery replacement. If the vehicle is equipped with a
police package, continue with Step 3 of this procedure.

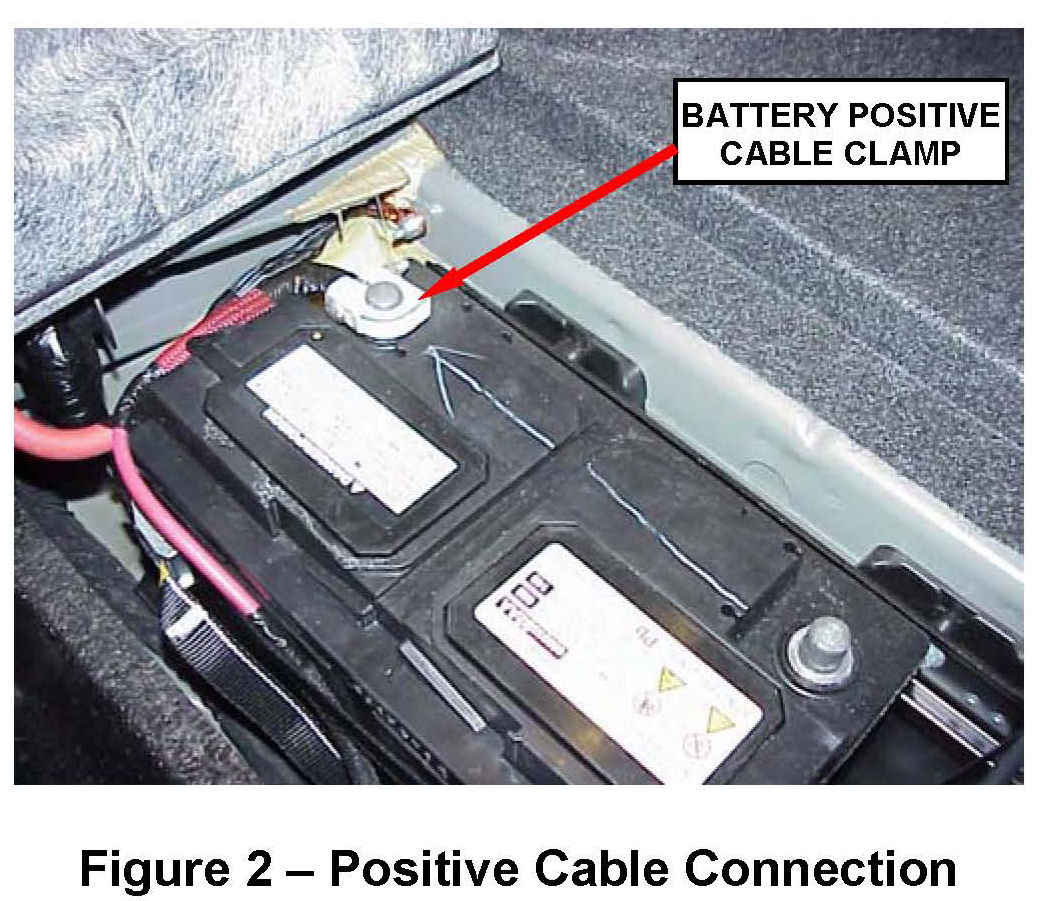

a. Disconnect the battery positive cable clamp from the battery terminal (Figure 2).

b. Unlatch the battery retention strap.





c. Gently disconnect the battery vent hose from the battery vent nipple (Figure 3).

CAUTION:
Use care when disconnecting the battery vent hose from the battery. The vent hose nipple is made of plastic and can be damaged if not disconnected properly.

d. Remove the battery hold down clamp and remove the battery from the vehicle.

e. Position the new battery in the battery tray.

f. Install the battery hold down clamp.
Tighten the bolt to 35 in. lbs. (4 N.m).

g. Gently connect the battery vent hose to the battery nipple (Figure 3).

CAUTION:
Use care when connecting the battery vent hose to the battery vent nipple.

h. Latch the battery retention strap.

i. Connect the battery positive cable (Figure 2).

3. Replace the transmission negative ground cable using the following procedure:

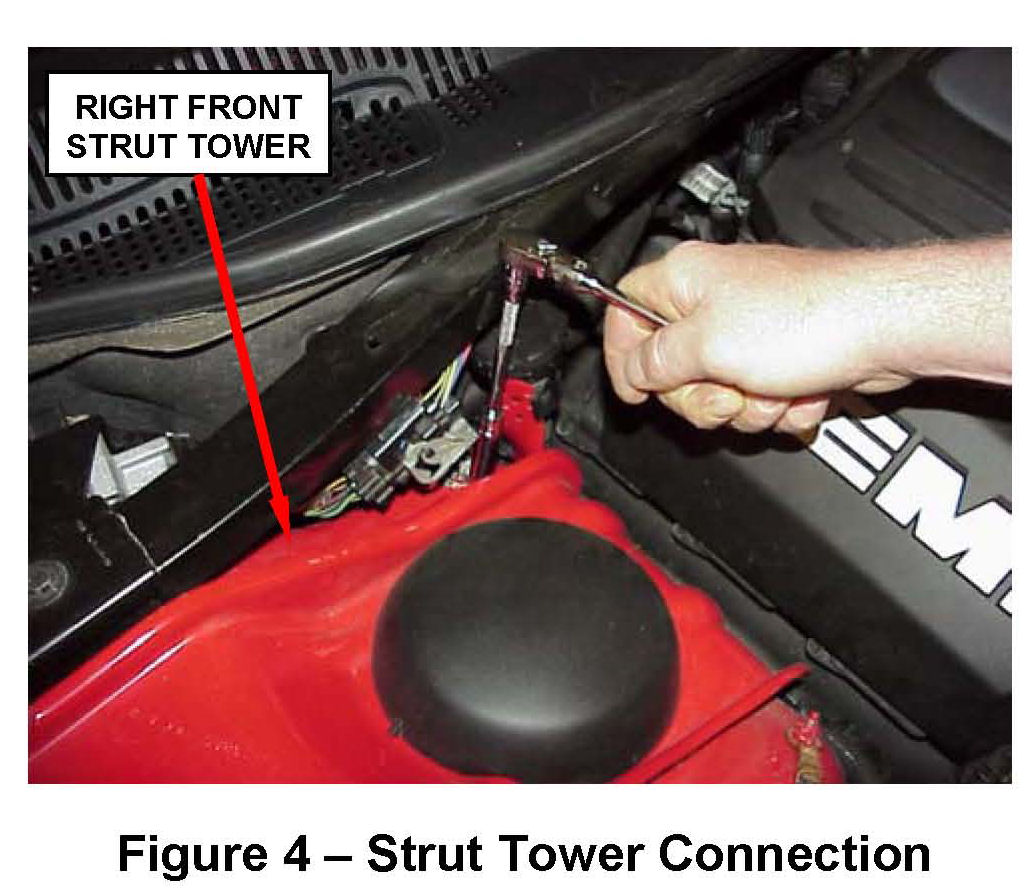

a. Remove and save the nut securing the transmission negative ground cable to the right front strut tower (Figure 4).

b. Remove the transmission negative ground wire eyelet from the strut tower stud.

c. Raise vehicle on an appropriate hoist.

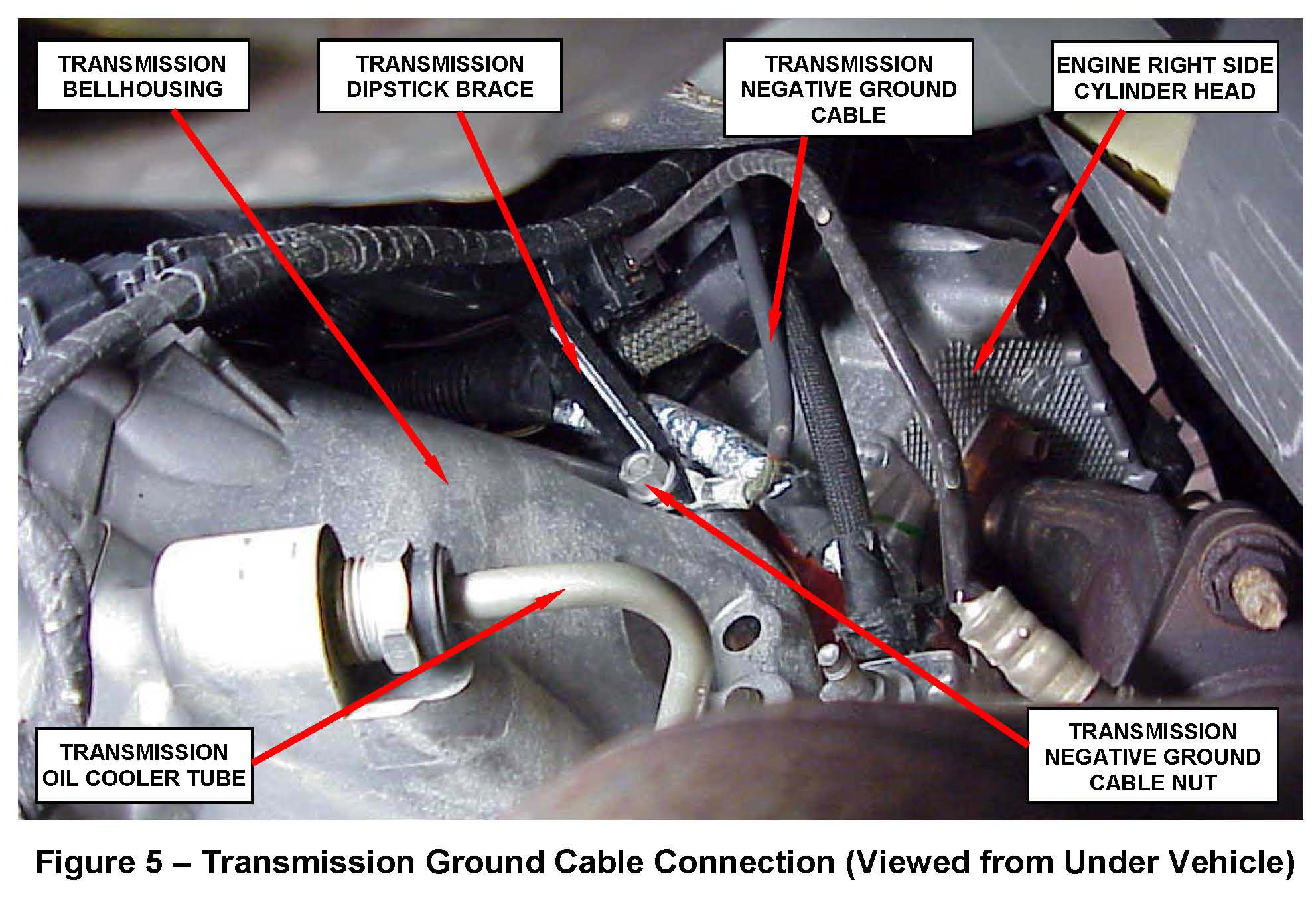

d. Remove and save the nut securing the transmission negative ground cable to the transmission bellhousing stud. (Figure 5).

e. Vehicles equipped with an automatic transmission, relocate the transmission dipstick brace from the transmission bellhousing stud (Figure 5).

f. Remove and discard the transmission negative ground cable from the vehicle.

g. Route the new transmission negative ground cable in the vehicle.

h. Install the transmission negative ground cable eyelet onto the transmission stud.

i. Vehicles equipped with an automatic transmission, position the transmission dipstick brace onto the transmission stud (Figure 5).

j. Install the nut securing the transmission negative ground cable and dipstick brace to the transmission housing. Tighten the nut to 97 in. lbs. (11 N.m).

k. Lower the vehicle from the hoist.

l. Install the transmission negative ground cable eyelet onto the right shock tower stud and install the retaining nut (Figure 4). Tighten the fastener to 106 in. lbs. (12 N.m).

m. Connect the battery negative cable clamp to the negative battery post (Figure 1).

n. Install the load floor cover.

4. For Vehicles equipped with the "Auto-Up" front window feature, calibrate the door module using the following procedure:

a. Turn the ignition to the "Run" position.

b. Regardless of current window position, move the driver side front window upward until the window stalls in the full up position. Allow the window motor to stall for at least 2 seconds before releasing the window switch.

c. Move the driver side front window downward until the window stalls in the full down position. Allow the window motor to stall for at least 2 seconds before releasing the window switch.

d. Move the driver side front window upward until the window stalls in the full up position. Allow the window motor to stall for at least 2 second before releasing the window switch.

e. Repeat steps 4a. through 4d. to calibrate the module for the passenger side front window.

f. Verify the windows are properly calibrated by operating the "Auto-Up" feature on the windows. Repeat this procedure if the calibration failed.

5. For Vehicles equipped with Electronic Stability Program (ESP), calibrate the Steering Angle Sensor (SAS) using the following procedure:

CAUTION:
If the vehicle is equipped with Electronic Stability Program (ESP), once the battery is reconnected, the Steering Angle Sensor (SAS) within the Antilock Brake Module (ABM) needs to be calibrated. The SAS requires calibration (initialization) using the StarSCAN scan tool. If the SAS is not calibrated following battery reconnection, the ESP/BAS indicator lamp will flash continuously with no Diagnostic Trouble Codes (DTC's).

a. Position the front wheels straight ahead and center the steering wheel.

b. Connect the StarSCAN scan tool to the vehicle data link connector.

c. Turn on the StarSCAN and place the ignition in the "RUN" position.

d. Starting at the "HOME" screen, select "ECU View".

e. Select "ABS Anti Lock Brakes".

f. Select "Misc. Functions".

g. Select "Initialize ECU".

h. Follow the StarSCAN on-screen instruction to complete the drive test.

6. Check and clear all Diagnostic Trouble Codes (DTC's) using the following procedure:

a. Starting at the "Home" screen, select "System View".

b. Select "All DTC's".

c. Select "Clear All Stored DTC's" and follow the StarSCAN on-screen instructions.

7. Disconnect and remove the StarSCAN from the vehicle.
