Upper

UPPER

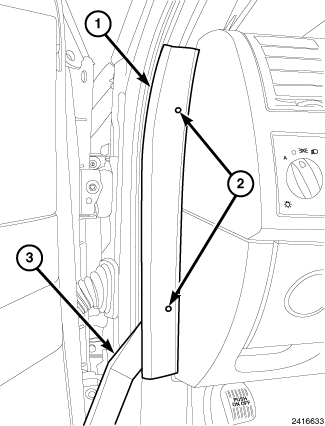

1. Using trim tool C-4829A or equivalent (3), directly below the lower retaining clip (2), release the clip.





2. Using trim tool C-4829A or equivalent (3), directly below the upper retaining clip (2), release the clip and remove the upper cowl trim panel (1).
