Backlite Antenna Amplifier C2 (Backlite Jumper 1) 1 Way
Backlite Antenna Amplifier C2 (Backlite Jumper 1) 1 Way

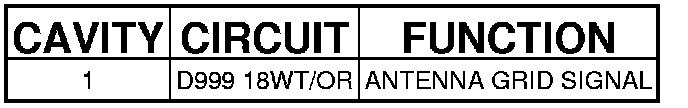

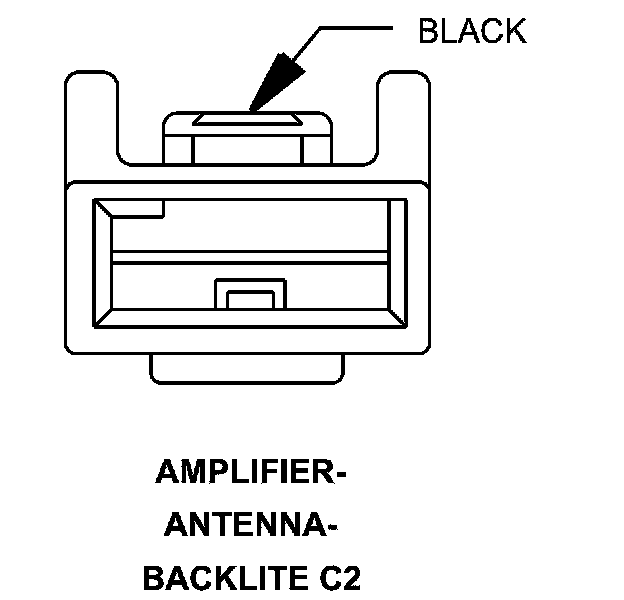

Connector C2 - (BACKLITE JUMPER 1) 1 WAY
AMPLIFIER
-ANTENNA-BACKLITE - (BACKLITE JUMPER 1) 1 WAY
