Auxiliary Power Outlet

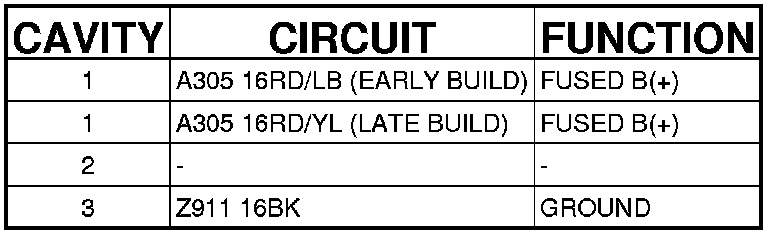

Connector (EXCEPT POLICE) - (CONSOLE) 3 WAY

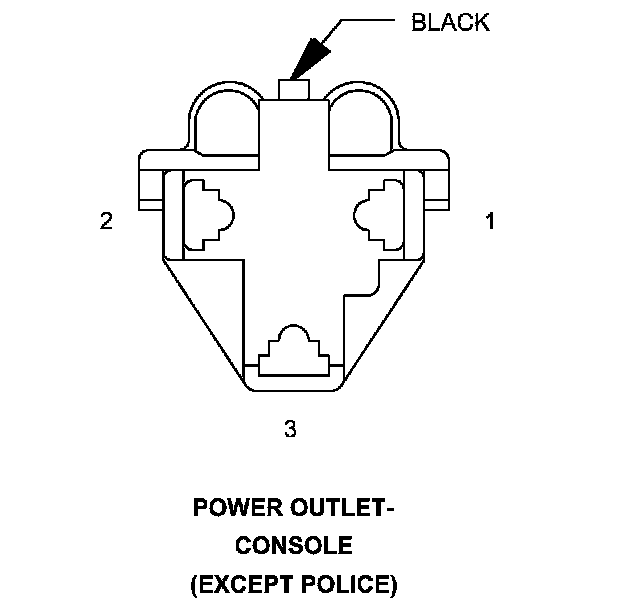

POWER OUTLET-CONSOLE (EXCEPT POLICE) - (CONSOLE) 3 WAY
