C203 (Body Side) 43 Way
C203 (Body Side) 43 Way

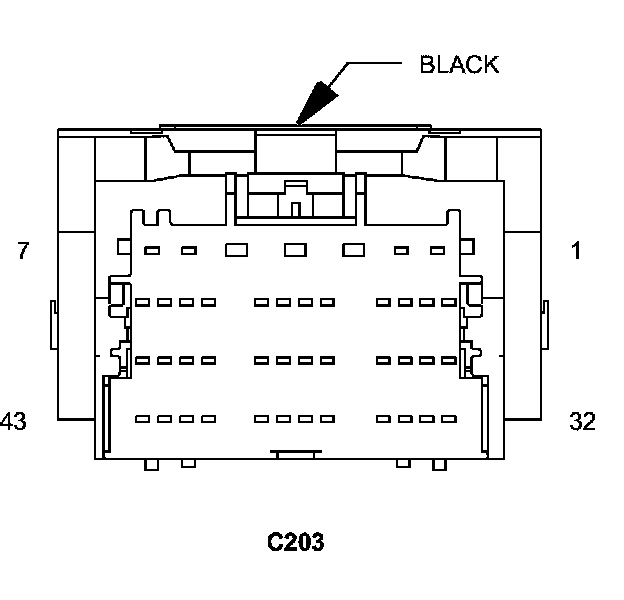

Connector - (BODY SIDE) 43 WAY

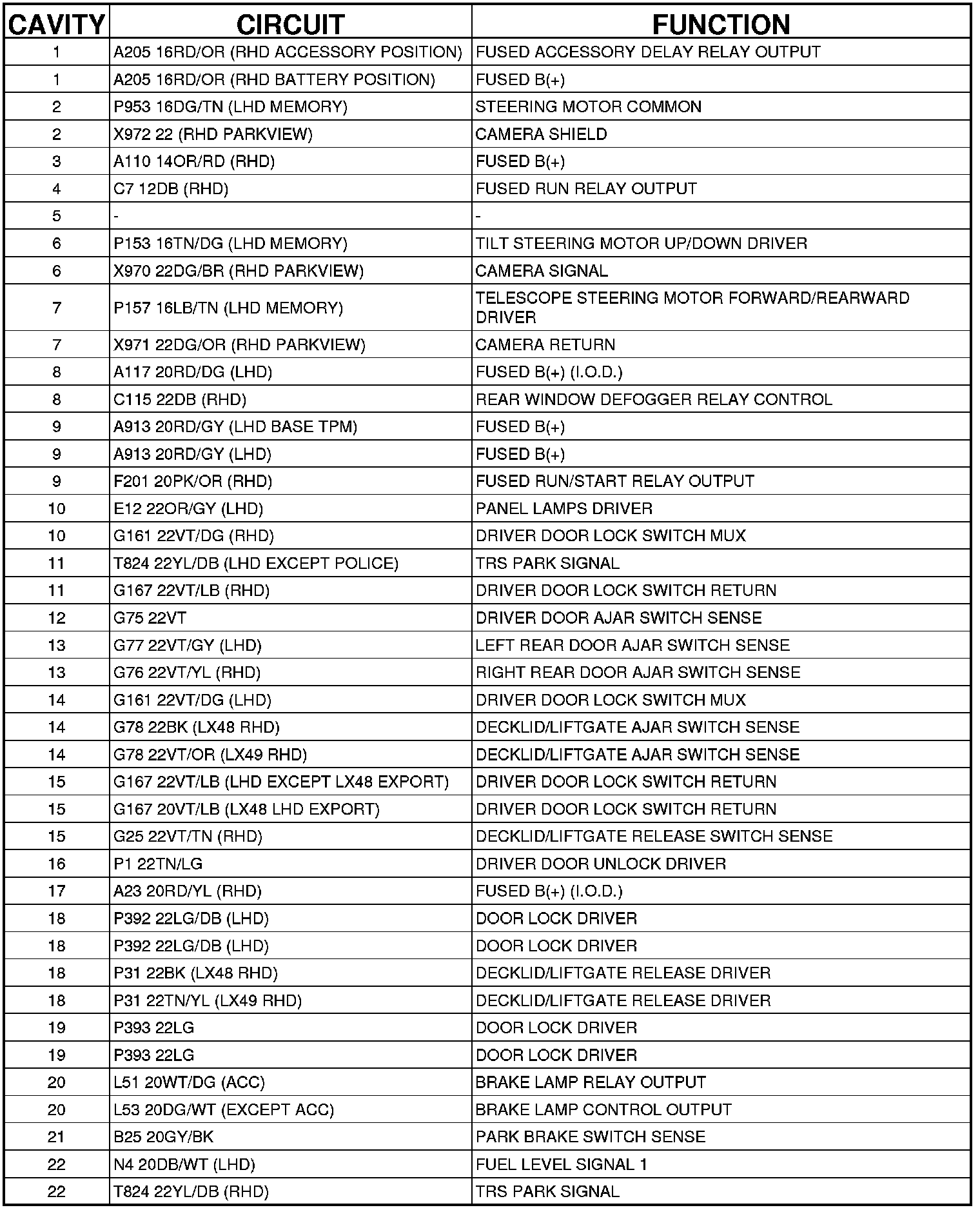

C203 - (BODY SIDE) 43 WAY
