C204 (Instrument Panel Side) 18 Way
C204 (Instrument Panel Side) 18 Way
Connector - (INSTRUMENT PANEL SIDE) 18 WAY

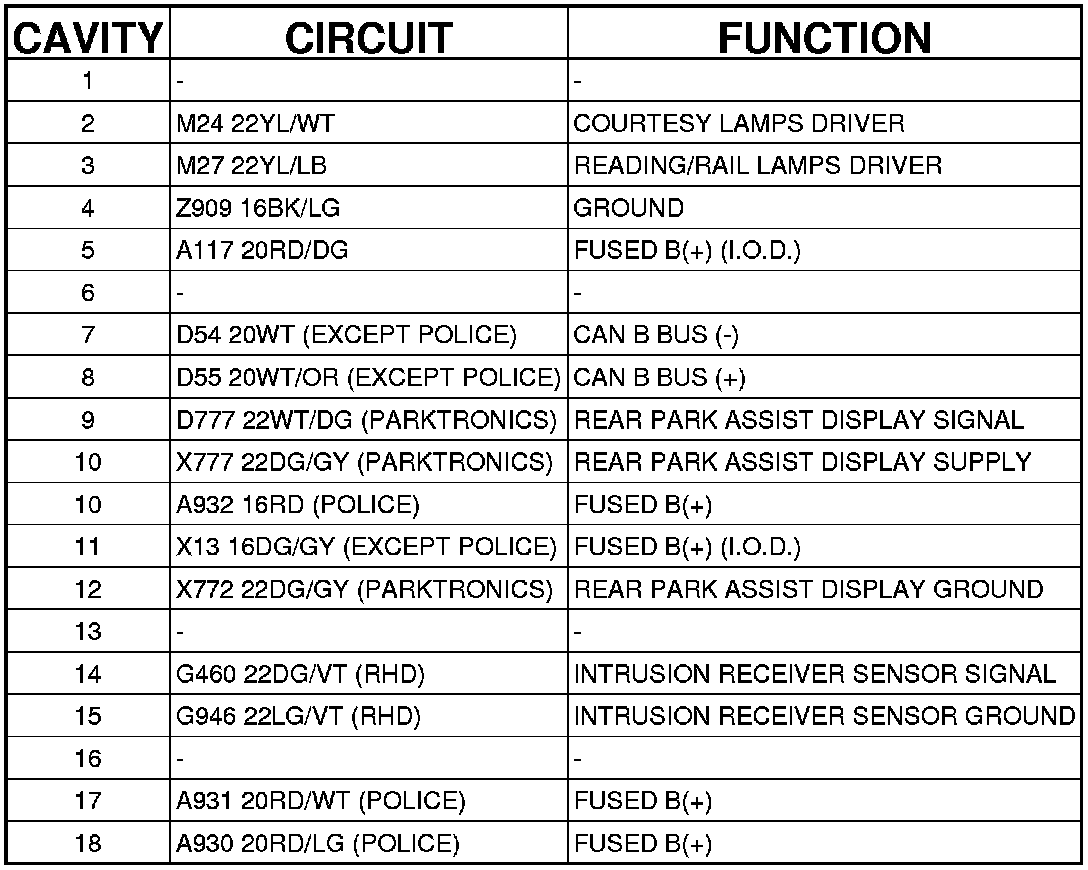

C204 - (INSTRUMENT PANEL SIDE) 18 WAY
