C207 (Instrument Panel Side) 2 Way
C207 (Instrument Panel Side) 2 Way

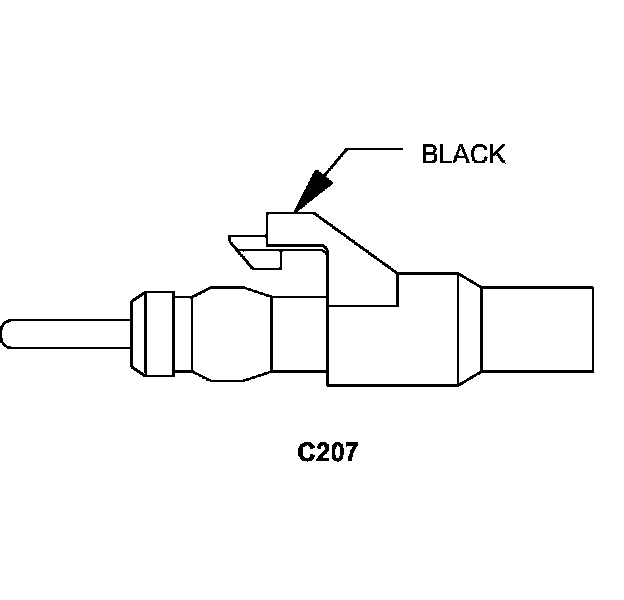

Connector - (INSTRUMENT PANEL SIDE) 2 WAY

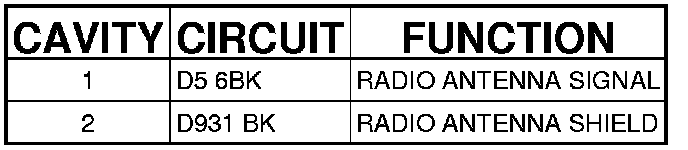

C207 - (INSTRUMENT PANEL SIDE) 2 WAY
