C306 (LX48 Except Base) (Body Side) 10 Way
C306 (LX48 Except Base) (Body Side) 10 Way

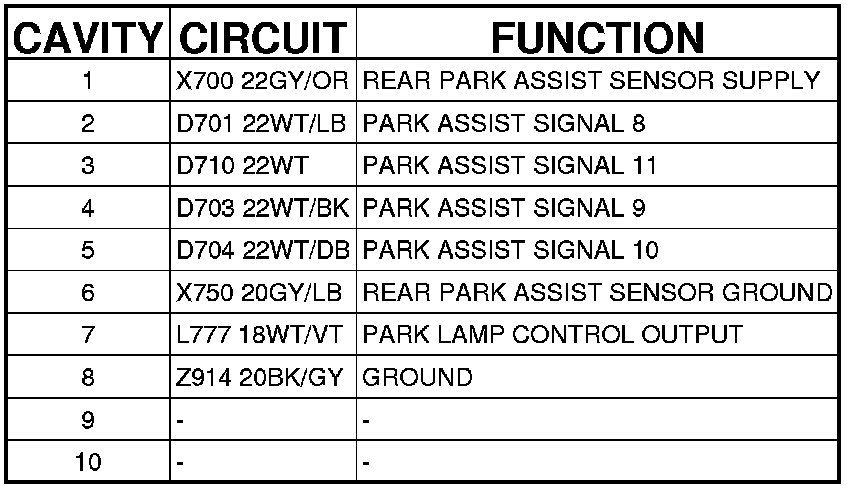

Connector (LX48 EXCEPT BASE) - (BODY SIDE) 10 WAY

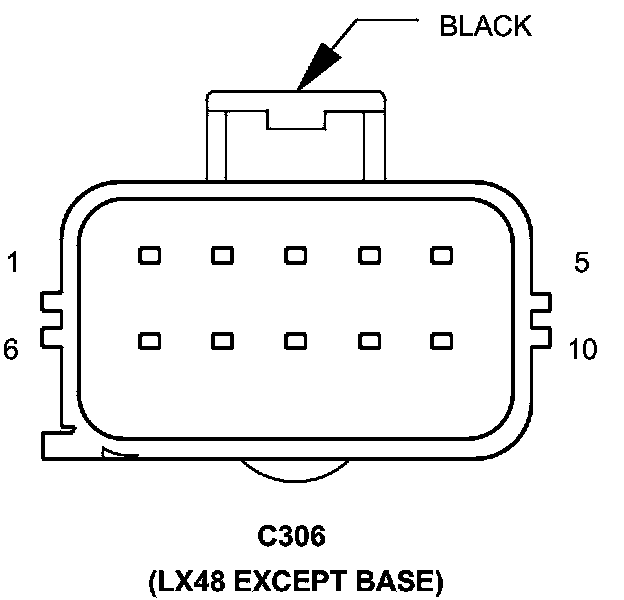

C306 (LX48 EXCEPT BASE) - (BODY SIDE) 10 WAY
