C308 (Right Tail Lamp Side) 6 Way
C308 (Right Tail Lamp Side) 6 Way

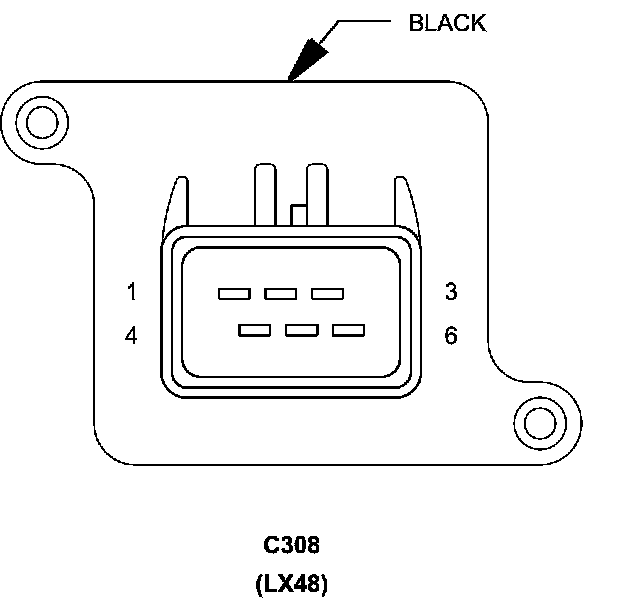

Connector (LX48) - (RIGHT
TAIL LAMP
SIDE) 6 WAY

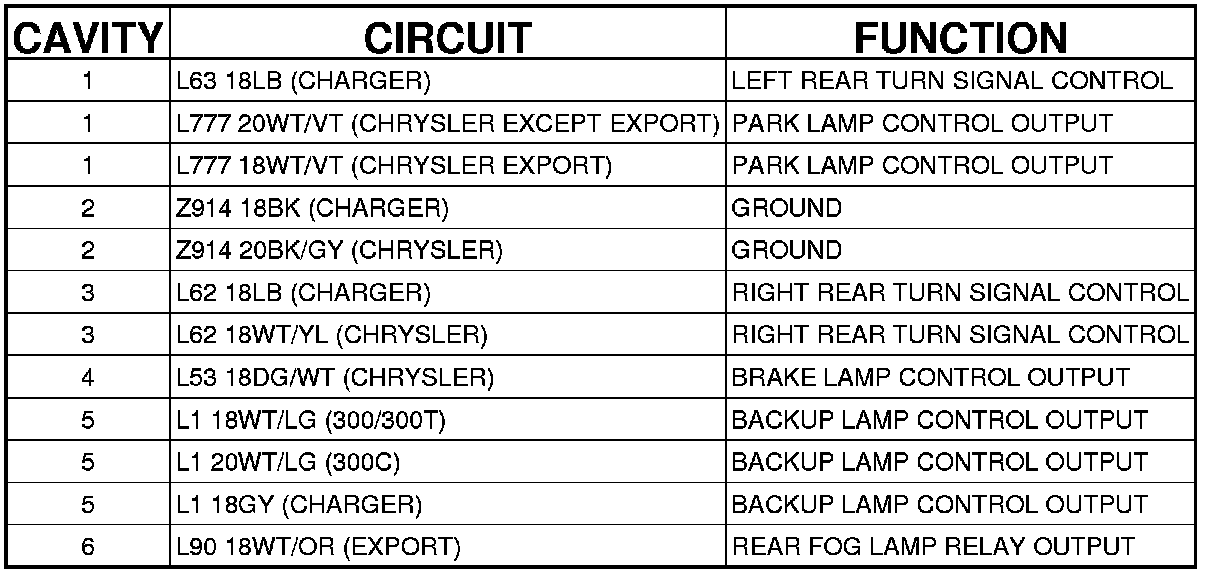

C308 (LX48) - (RIGHT
TAIL LAMP
SIDE) 6 WAY
