C313 (Police) (Body Side) 8 Way
C313 (Police) (Body Side) 8 Way

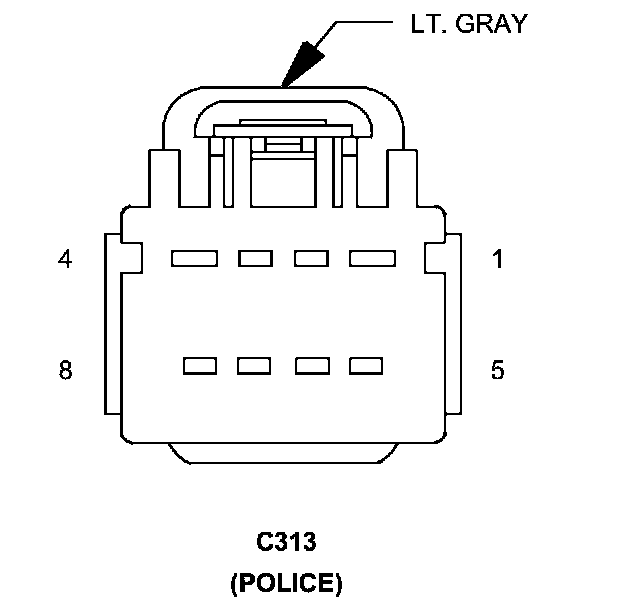

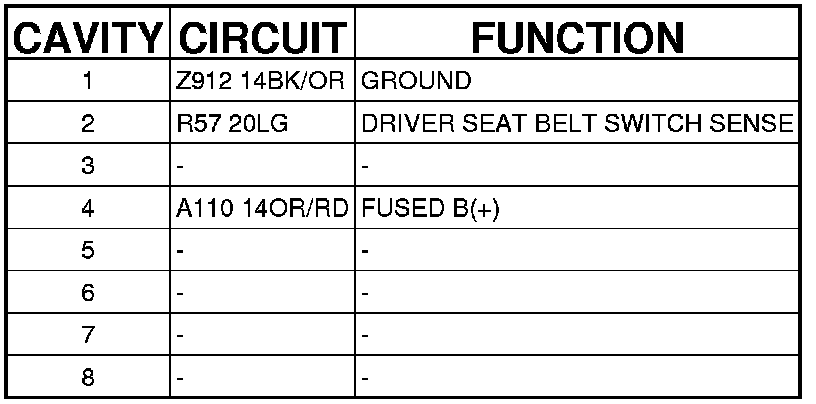

Connector (POLICE) - (BODY SIDE) 8 WAY
C313 (POLICE) - (BODY SIDE) 8 WAY
