C314 (Front Seat Side) 14 Way
C314 (Front Seat Side) 14 Way

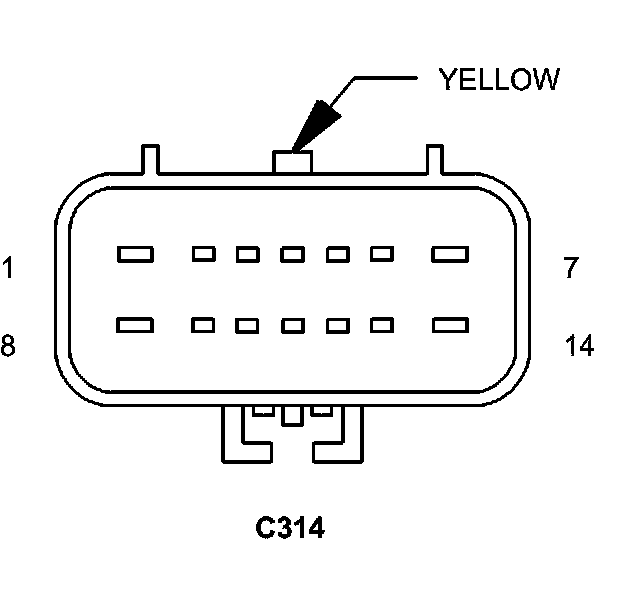

Connector - (FRONT SEAT SIDE) 14 WAY

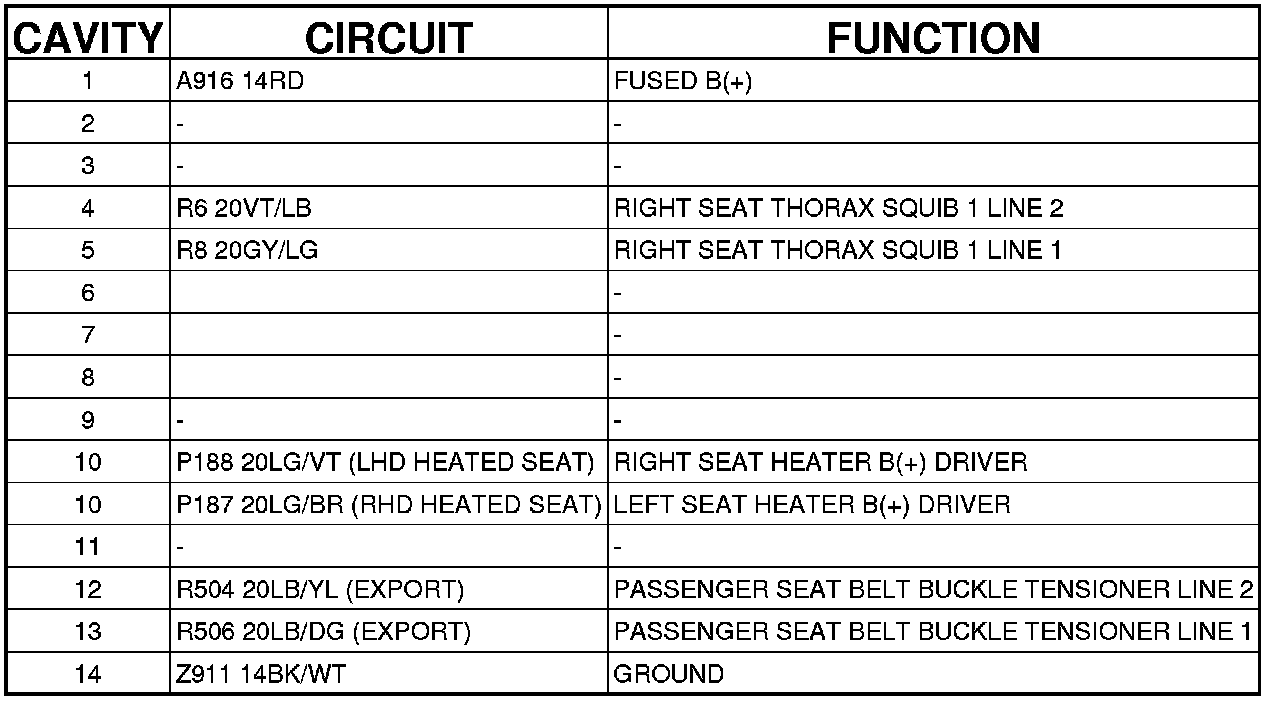

C314 - (FRONT SEAT SIDE) 14 WAY
