C315 (Base) (Front Seat Side) 2 Way
C315 (Base) (Front Seat Side) 2 Way

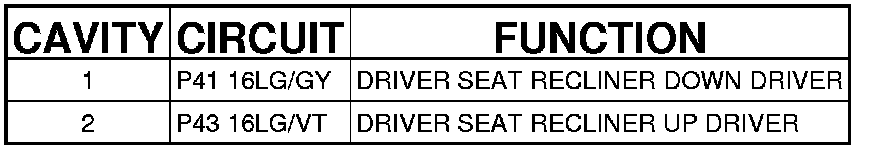

Connector (BASE) - (FRONT SEAT SIDE) 2 WAY

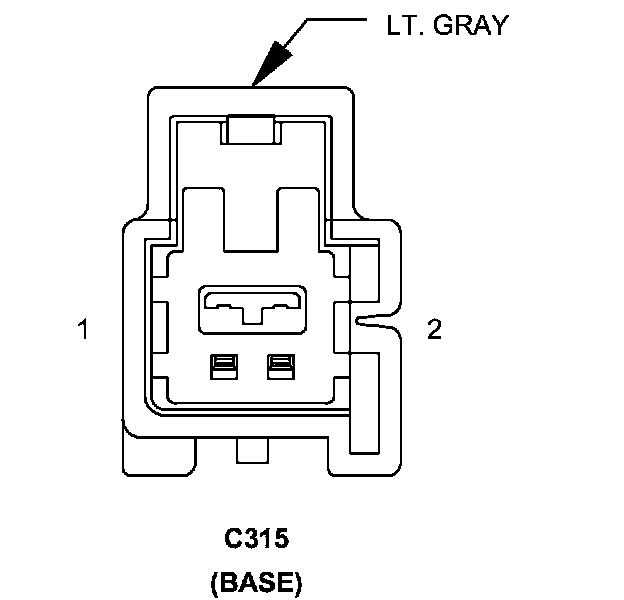

C315 (BASE) - (FRONT SEAT SIDE) 2 WAY
