C316 (Front Seat Side) 4 Way
C316 (Front Seat Side) 4 Way

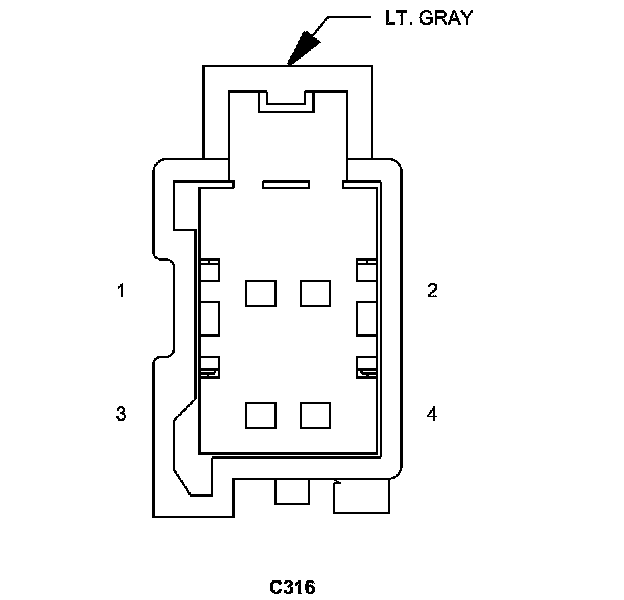

Connector - (FRONT SEAT SIDE) 4 WAY

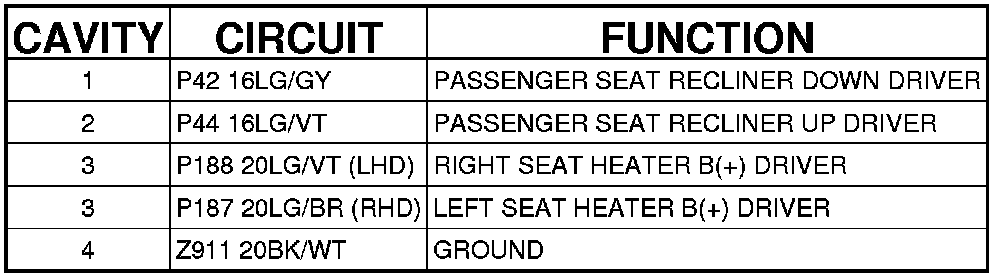

C316 - (FRONT SEAT SIDE) 4 WAY
