C320 (Rear Heated Seats) (Rear Seat Side) 6 Way

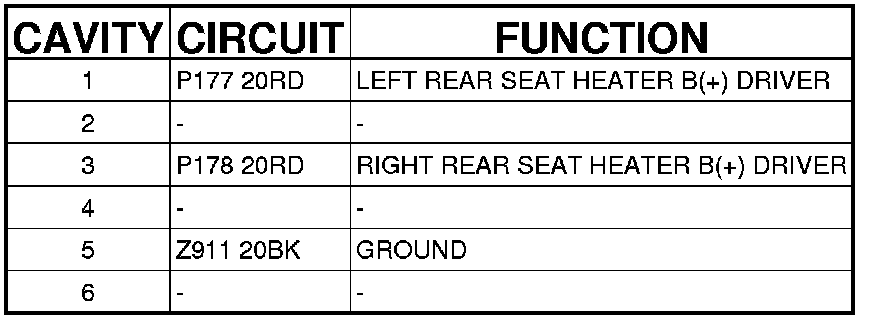

Connector (REAR HEATED SEATS) - (REAR SEAT SIDE) 6 WAY

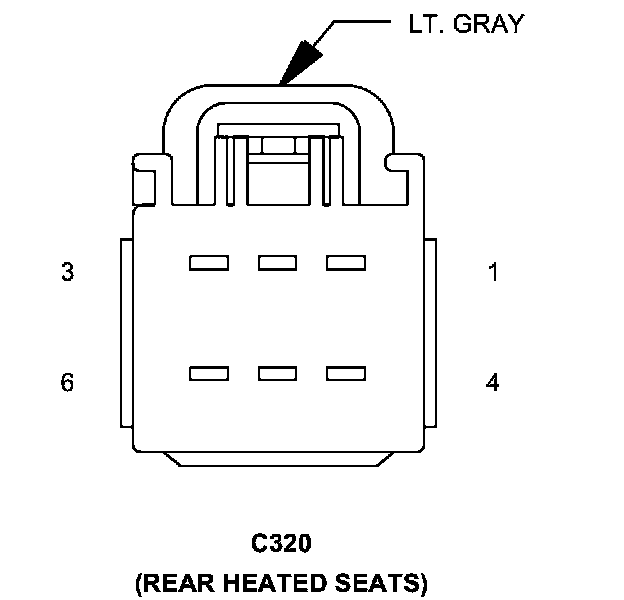

C320 (REAR HEATED SEATS) - (REAR SEAT SIDE) 6 WAY
