C332 (Satellite Video) (Audio/Video Jumper Side) 2 Way

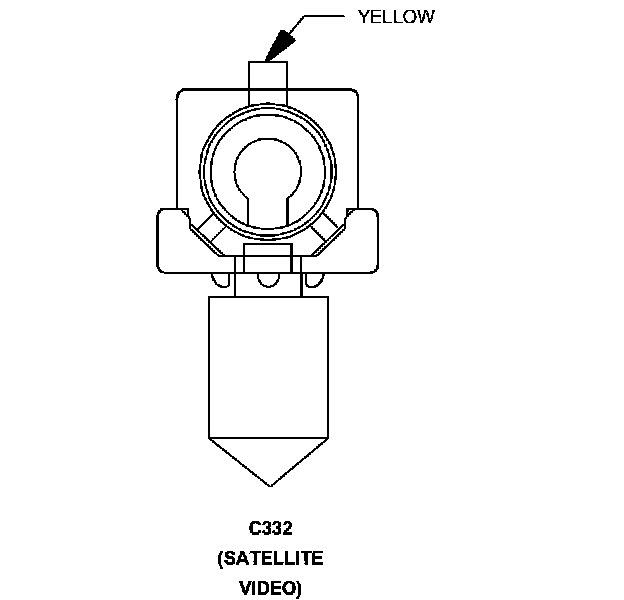

Connector (SATELLITE VIDEO) - (AUDIO/VIDEO JUMPER SIDE) 2 WAY

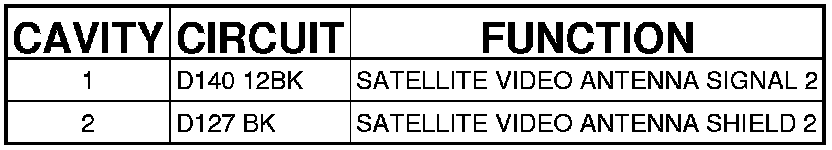

C332 (SATELLITE VIDEO) - (AUDIO/VIDEO JUMPER SIDE) 2 WAY
