Clock
Clock

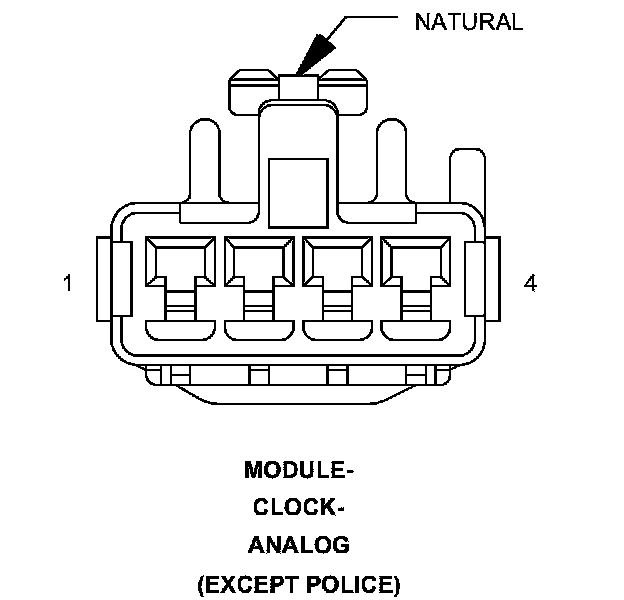

Connector (EXCEPT POLICE) - (INSTRUMENT PANEL) 4 WAY

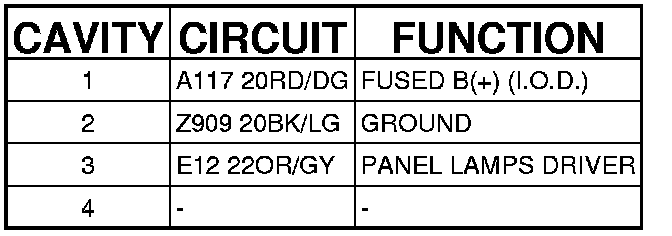

MODULE-CLOCK-ANALOG (EXCEPT POLICE) - (INSTRUMENT PANEL) 4 WAY
