Home >> Chrysler >> 2009 >> 300 V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance and Parking Assist Systems >> System Diagram

System Diagram






Connector (PARKTRONICS) - (HEADLINER) 3 WAY

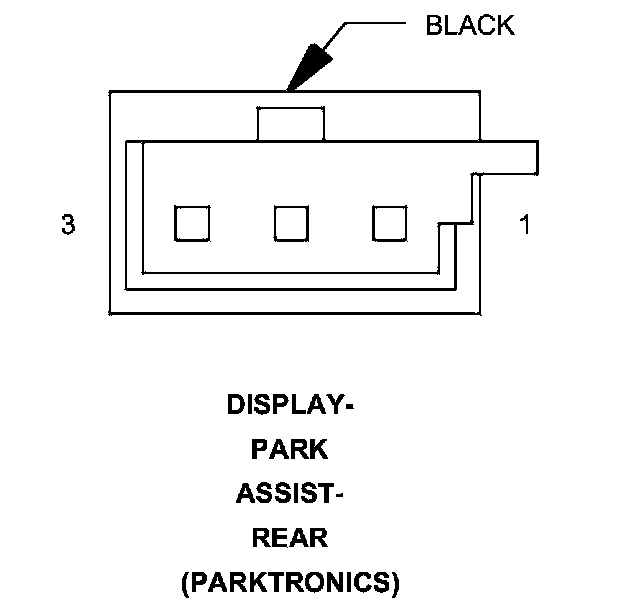

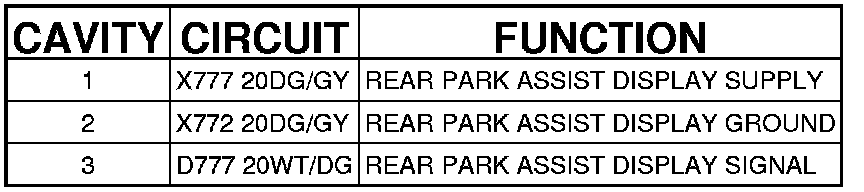

DISPLAY-PARK ASSIST-REAR (PARKTRONICS) - (HEADLINER) 3 WAY
