Courtesy Lamp
>>
Glove Box Lamp
Glove Box Lamp

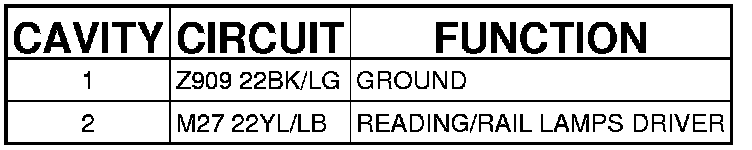

Connector (EXCEPT POLICE) - (INSTRUMENT PANEL) 2 WAY

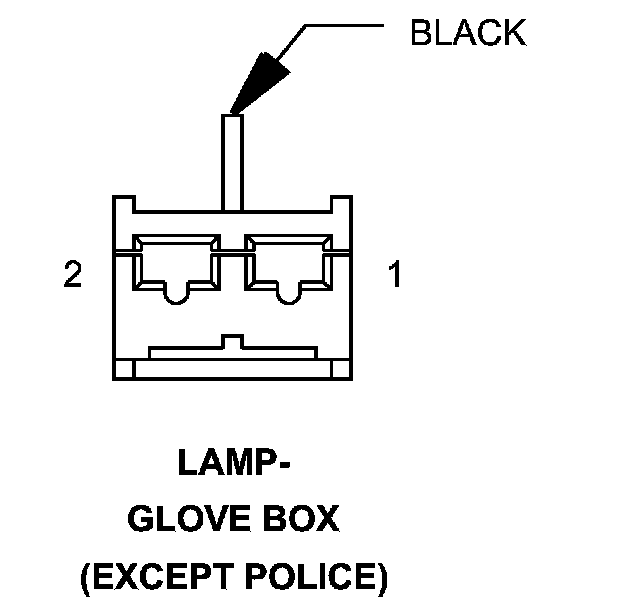

LAMP-GLOVE BOX (EXCEPT POLICE) - (INSTRUMENT PANEL) 2 WAY
