Pedal Positioning Sensor

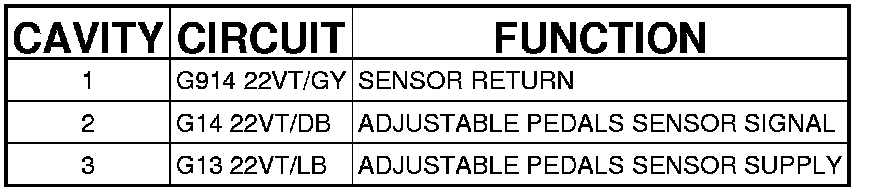

Connector (LHD MEMORY) - (BODY) 3 WAY




SENSOR-ADJUSTABLE PEDALS (LHD MEMORY) - (BODY) 3 WAY
