Police / Special Vehicle Options
>>
Police Relay 1 (Police) (In F/RB) 5 Way
Police Relay 1 (Police) (In F/RB) 5 Way

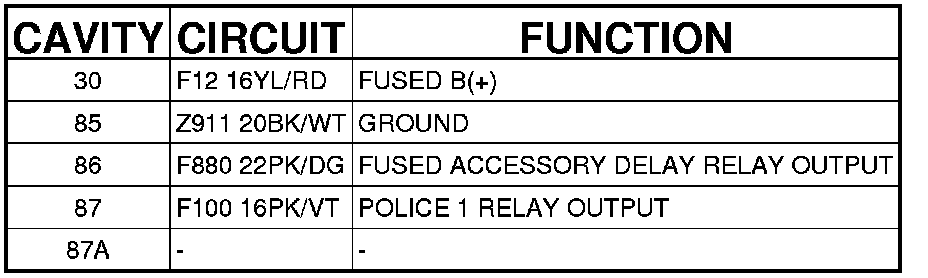

Connector (POLICE) - (IN F/RB) 5 WAY

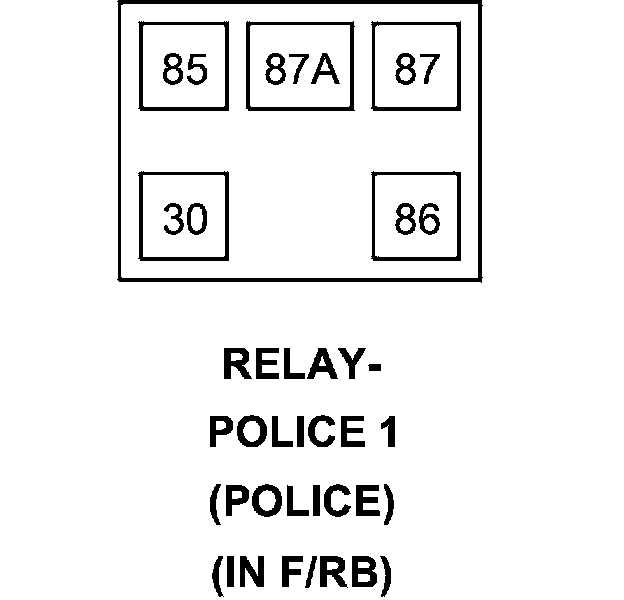

RELAY-POLICE 1 (POLICE) - (IN F/RB) 5 WAY
