Seat Temperature Relay
Seat Temperature Relay

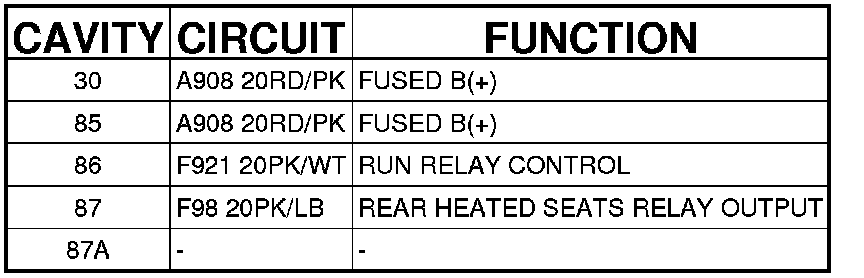

Connector (REAR HEATED SEATS) - (IN PDC) 5 WAY
RELAY-HEATED SEATS-REAR (REAR HEATED SEATS) - (IN PDC) 5 WAY
