Seat Temperature Switch
>>
Left Heated Seat Switch (Instrument Panel) 8 Way
Left Heated Seat Switch (Instrument Panel) 8 Way

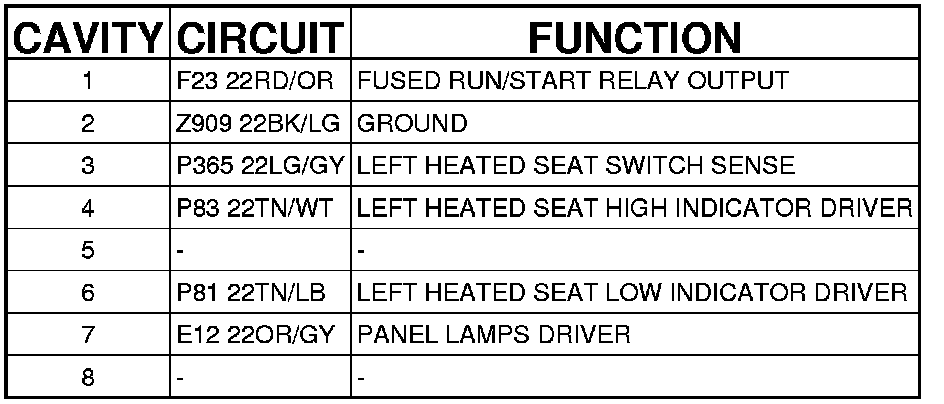

Connector - (INSTRUMENT PANEL) 8 WAY
SWITCH-HEATED SEAT-LEFT - (INSTRUMENT PANEL) 8 WAY
