Left Front Park/Turn Lamp (Chrysler Except Export) (Headlamp And Dash) 3 Way

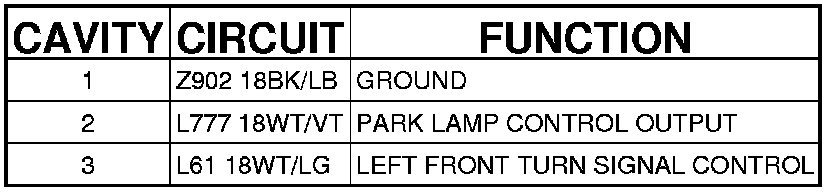

Connector (CHRYSLER EXCEPT EXPORT) - (HEADLAMP AND DASH) 3 WAY




LAMP-PARK/TURN-LEFT FRONT (CHRYSLER EXCEPT EXPORT) - (HEADLAMP AND DASH) 3 WAY
