Right Front Park/Turn Lamp (Chrysler Except Export) (Headlamp And Dash) 3 Way






Connector (CHRYSLER EXCEPT EXPORT) - (HEADLAMP AND DASH) 3 WAY

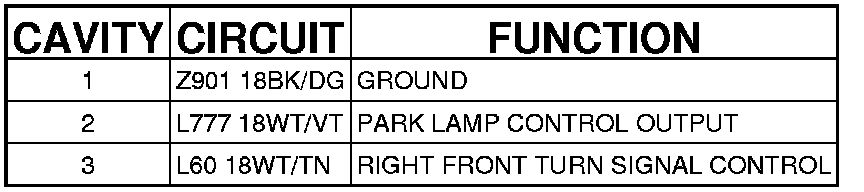

LAMP-PARK/TURN-RIGHT FRONT (CHRYSLER EXCEPT EXPORT) - (HEADLAMP AND DASH) 3 WAY
