Rear ABS Wheel Speed Sensor (Body) 4 Way
Rear ABS Wheel Speed Sensor (Body) 4 Way

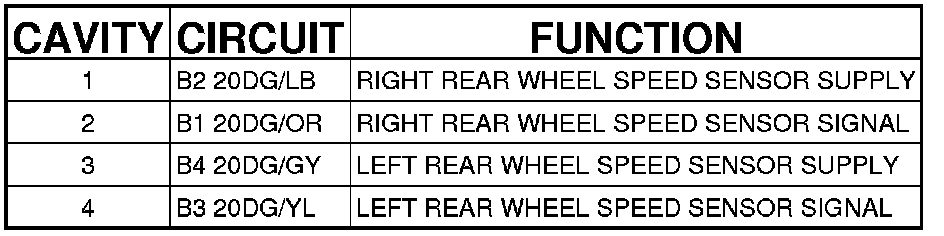

Connector - (BODY) 4 WAY
SENSOR-WHEEL SPEED-REAR - (BODY) 4 WAY
