Lower

REMOVAL - INTAKE MANIFOLD LOWER





1. Release fuel system pressure Service and Repair.
2. Disconnect negative battery (1) cable located in trunk.
3. Remove upper intake manifold Intake Manifold - Removal.

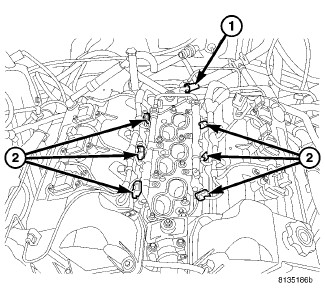

4. Disconnect injector electrical connectors (2).
5. Disconnect fuel supply hose (1) from fuel rail Service and Repair.





6. Remove bolts attaching fuel rail (1 - 4).
7. Remove fuel rail and injectors as an assembly.

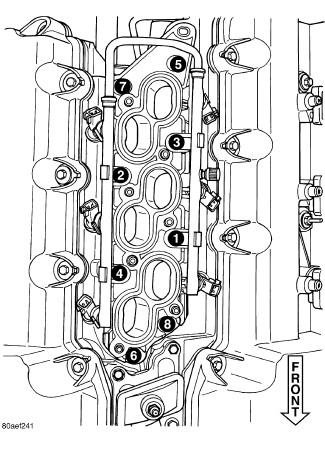

8. Remove manifold attaching bolts.
9. Remove lower manifold.
10. Inspect manifold Intake Manifold - Inspection.
