Reading Lamp - Removal

REMOVAL

OVERHEAD CONSOLE





1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755) or equivalent, gently pry out the top (toward windshield) side of the reading lamp lens.





3. Lift the top of the lens up and slide forward (toward windshield) until the tab is released from the overhead console.
4. Gently pull the lamp out of the overhead console.

REAR





1. Disconnect and isolate the battery negative cable.

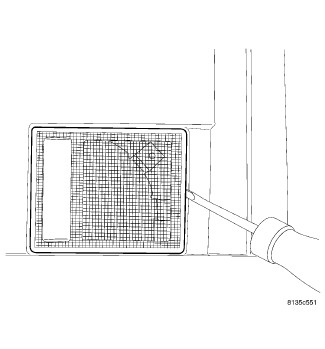

2. Using a trim stick (special tool #C-4755) or equivalent, gently pry out the edge of the reading lamp lens. There will be a small slot on the side of the lens that should be used. Looking at the unit it will be on the left side of the lens.





3. Lift out on the lens and slide the lens to the left so that the retaining tabs are exposed and the lens can be then removed.

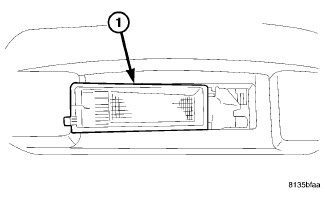

4. Grasp lamp with fingers and firmly pull lamp (1) from unit.
