Left High Beam Lamp (Except Charger HID Lamps) (Headlamp And Dash) 2 Way

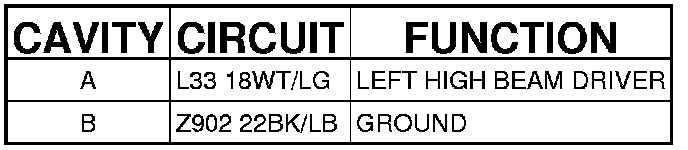

Connector (EXCEPT CHARGER HID LAMPS) - (HEADLAMP AND DASH) 2 WAY

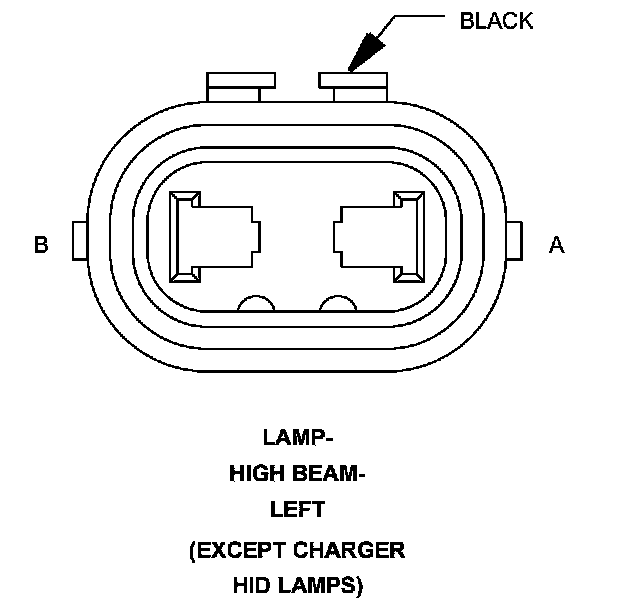

LAMP-HIGH BEAM-LEFT (EXCEPT CHARGER HID LAMPS) - (HEADLAMP AND DASH) 2 WAY
