B1223

B1223-RIGHT HEATED SEAT LO INDICATOR CONTROL CIRCUIT OPEN





For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously with the ignition on.

- Set Condition:
This code is set immediately when the Cluster detects low voltage on the heated seat indicator control circuit.





1. VERIFY THAT DTC B1223-RIGHT HEATED SEAT LO INDICATOR CONTROL CIRCUIT OPEN IS ACTIVE
1. With the scan tool, record and erase DTC's
2. Operate the Heated Seat Switch in both positions several times.
3. With the scan tool, read DTC's.

Does the DTC B1223-RIGHT HEATED SEAT LO INDICATOR CONTROL CIRCUIT OPEN reset?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST. Body Verification Test.

2. INSPECT PDC FUSES
1. Check PDC fuses #8 and #40.

Is either fuse open?

Yes

- Check for a possible short to ground on the (F23) Fused Ignition Switch Output (Run-Start) Circuit and replace the fuse as necessary.
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. DISCONNECT THE CLUSTER C-3 CONNECTOR AND CHECK FOR VOLTAGE




1. Reinstall fuse if removed in previous test.
2. Disconnect the Cluster C-3 connector.

NOTE: Check connectors - Clean and repair as necessary.

3. Turn the ignition on.

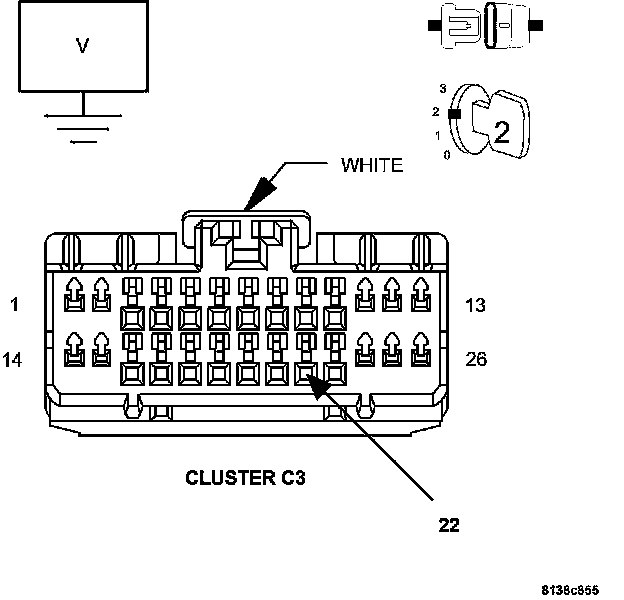

4. Measure the voltage at the (P82) Right Heated Seat Low Indicator Driver circuit at the Cluster C-3 connector.

Is the voltage above 10.0 volts?

Yes

- Replace the Cluster.
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

4. CHECK THE (F23) FUSED IGNITION SWITCH OUTPUT (RUN-START)




1. Disconnect the Right Heated Seat switch connector.

NOTE: Check connectors - Clean and repair as necessary.

2. Turn the ignition on.
3. Measure the voltage of the (F23) Fused Ignition Switch Output circuit at the Right Heated Seat Switch connector.

Is the voltage above 10.0 volts ?

Yes

- Go To 5

No

- Repair the (F23) Fused Ignition Switch Output circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test.

5. CHECK THE (P82) RIGHT HEATED SEAT LO INDICATOR DRIVER CIRCUIT FOR A SHORT TO GROUND




1. Measure the resistance between ground and the (P82) Right Heated Seat Lo Indicator Driver circuit.

Was the resistance below 5.0 ohms?

Yes

- Repair the (P82) Right Heated Seat Lo Indicator Driver circuit for a short to ground
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 6

6. CHECK THE (P82) RIGHT HEATED SEAT LO INDICATOR DRIVER CIRCUIT FOR AN OPEN

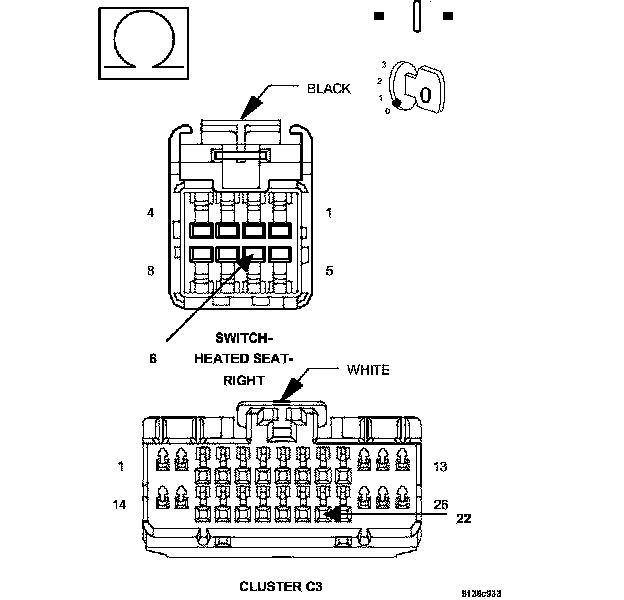

1. Measure the resistance of the (P82) Right Heated Seat Lo Indicator Driver circuit between the Cluster C-3 connector and the Right Heated Seat Switch connector.

Is the resistance below 5.0 ohms?

Yes

- Replace the Right Heated Seat Switch.
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (P82) Right Heated Seat Lo Indicator Driver circuit for an open.
- Perform BODY VERIFICATION TEST. Body Verification Test.
