B1613

B1613-PANEL ILLUMINATION CONTROL CIRCUIT LOW





For a complete wiring diagram refer to the Wiring Information. Electrical Diagrams

- When Monitored:
With the Ignition on, and the Panel Illumination active.

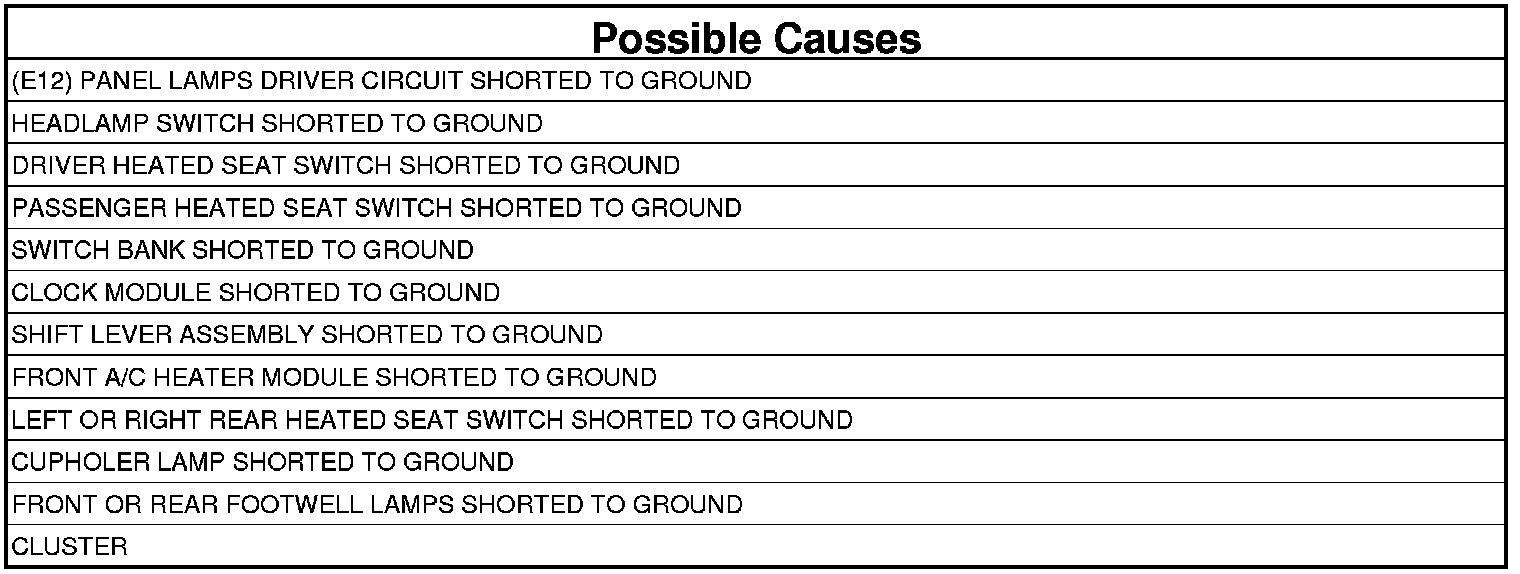

- Set Condition:
Panel Illumination Status LOW.





1. CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Activate the Panel Illumination.
4. Wait 30 seconds.
5. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform the BODY VERIFICATION TEST Body Verification Test

2. PANEL ILLUMINATION COMPONENT SHORTED TO GROUND

NOTE: Using the wiring diagram as your guide, disconnect each component one at a time and check for an active DTC.

1. Turn the ignition off.
2. Disconnect the component harness connector.
3. Turn the ignition on.
4. Activate the Panel Illumination.
5. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Once all components are disconnected: Go To 3

No

- Replace the appropriate component.
- Perform the BODY VERIFICATION TEST Body Verification Test

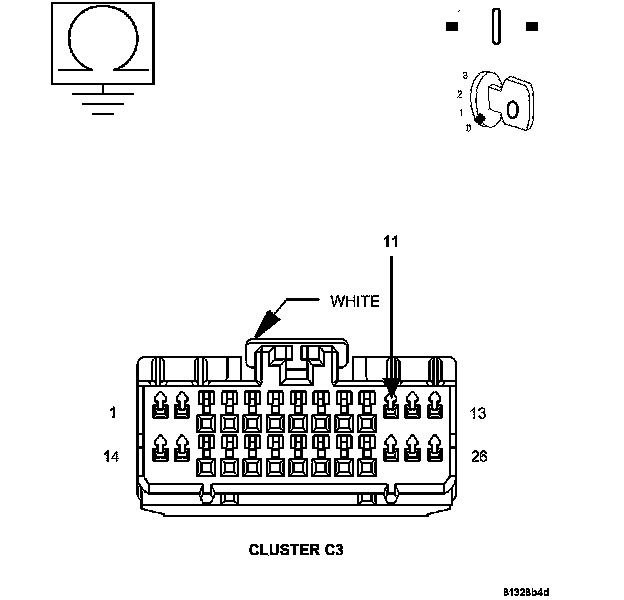

3. CHECK THE (E12) PANEL LAMPS DRIVER CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the Cluster C3 harness connector.
3. With all the above components disconnected, measure the resistance to ground of the (E12) Panel Lamps Driver Circuit from the Cluster C3 harness connector.

Is the resistance less than 10K ohms?

Yes

- Repair the (E12) Panel Lamps Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST Body Verification Test

No

- Replace the Cluster.
- Perform the BODY VERIFICATION TEST Body Verification Test
