B1B75






B1B75-RIGHT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL





For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

Theory of Operation
Impact sensors perform their own self test using power supplied by the Occupant Restraint Controller (ORC) then communicate this status back to the module. The repair of this fault centers on verifying the integrity of the sensor's internal circuitry and software validity.
- When Monitored:
The Occupant Restraint Controller (ORC) continuously communicates with the Right Side Impact Sensor 1 over the sensor signal circuit. The sensor communication and on board diagnostics are powered by the ORC signal. The impact sensor performs a self test for internal circuitry at power up during the initialization process, and continuously through the ignition cycle every 10 ms.

- Set Condition:
This code will set, if the ORC and the Right Side Impact Sensor 1 do not establish and maintain valid data communications.This DTC sets when the ORC receives notification of a self test failure within the impact sensor. Once set, this DTC is latched for the entire ignition cycle

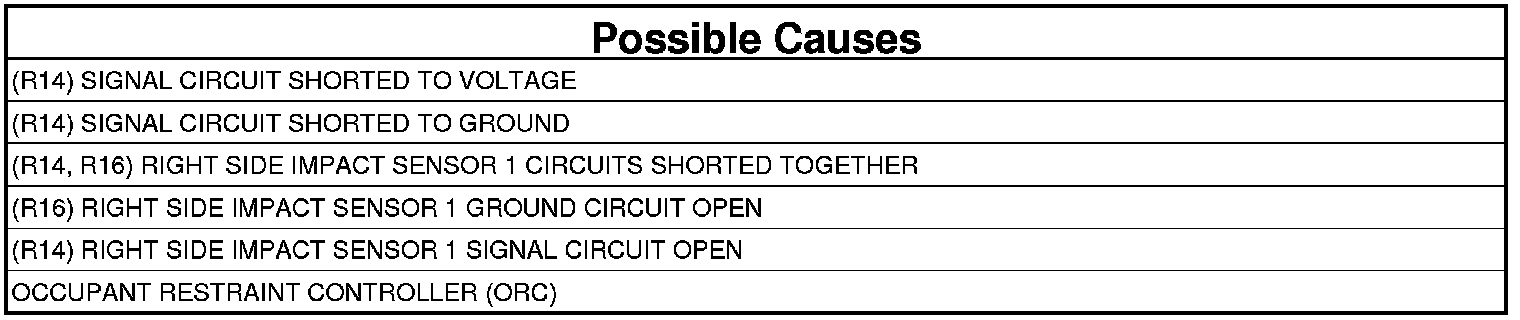

Always Perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

1. VERIFY THAT DTC B1B75-RIGHT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.

Does the scan tool display active: B1B75-RIGHT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. . Restraints System Intermittent Condition Test

2. CHECK THE (R14, R16) RIGHT SIDE IMPACT SENSOR 1 SIGNAL AND GROUND CIRCUITS FOR A SHORT TO VOLTAGE





WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Right Side Impact Sensor 1 connector.
2. Disconnect the ORC C1 connector.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Measure the voltage of the (R14) Right Side Impact Sensor 1 Signal circuit and (R16) Sensor Ground circuit at the Right Side Impact Sensor 1 connector and ground.

Is there any voltage present?

Yes

- Repair the (R14, R16) Right Side Impact Sensor 1 circuits for a short to voltage.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 3

3. CHECK THE (R14) RIGHT SIDE IMPACT SENSOR 1 SIGNAL CIRCUIT FOR A SHORT TO GROUND





WARNING: Turn the ignition on, then reconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and ground.

Is the resistance below 100K Ohms?

Yes

- Repair the (R14) Right Side Impact Sensor 1 Signal circuit for a short to ground.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 4

4. CHECK THE (R14, R16) RIGHT SIDE IMPACT SENSOR 1 CIRCUITS FOR A SHORT TOGETHER




1. Measure the resistance between the (R14) Right Side Impact Sensor 1 Signal and (R16) Sensor Ground circuits at the Right Side Impact Sensor 1 connector.

Is the resistance below 100K Ohms?

Yes

- Repair the (R14, R16) Right Side Impact Sensor 1 circuits shorted together.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 5

5. CHECK THE (R16) RIGHT SIDE IMPACT SENSOR 1 GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Connect the SRS Load Tool Kit 8443 to the ORC C1 connector.
2. Measure the resistance of the (R16) Right Side Impact Sensor 1 Ground circuit between the Right Side Impact Sensor 1 connector and the SRS Load Tool Kit 8443.

Is the resistance below 1 Ohm?

Yes

- Go To 6.

No

- Repair the (R16) Right Side Impact Sensor 1 Ground circuit for an open or high resistance
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

6. CHECK THE (R14) RIGHT SIDE IMPACT SENSOR 1 CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 connector and the SRS Load Tool Kit 8443.

Is the resistance below 1 Ohm?

Yes

- Go To 7.

No

- Repair the (R14) Right Side Impact Sensor 1 Signal circuit for an open or high resistance.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

7. CHECK OPERATION OF THE RIGHT SIDE IMPACT SENSOR 1
1. Replace the Right Side Impact Sensor 1.
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: Turn the ignition on, then reconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

Did the active Right Side Impact Sensor 1 DTC return?

Yes

- Go To 8.

No

- Repair is complete.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

8. REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

Repair

- Replace the Occupant Restraint Controller.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
